SPAN-P10R-G18M-PNLK-PNVBA-L1, Festo Pressure Switch 15bar, 15 → 30V, IP40 10 bar

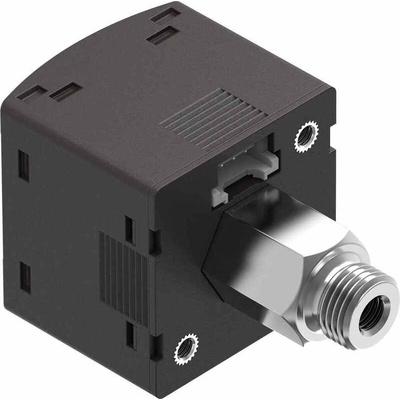

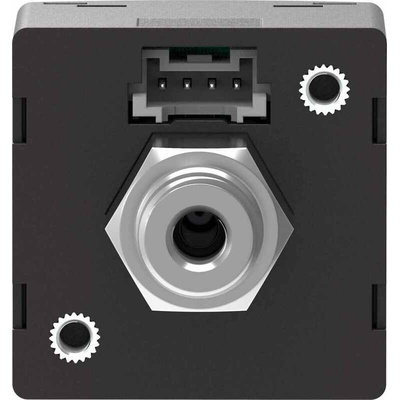

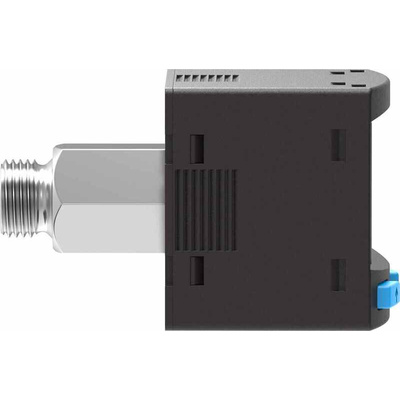

Festo Pressure Switch, IP40 - SPAN Series - SPAN-P10R-G18M-PNLK-PNVBA-L1

Use this pressure sensor from Festo when you need to monitor compressed air as well as non-corrosive gases. It uses piezoresistive technology for precise pressure monitoring and rapid response times. This unit transfers data to other sensors via a master device, and its smart technology is contained within a compact housing. It's compatible with a wide range of pneumatic connections, and you can also use it to detect objects or leaks.

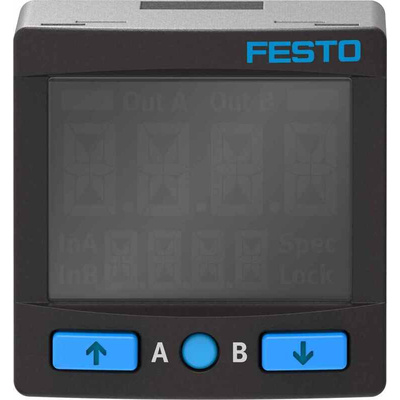

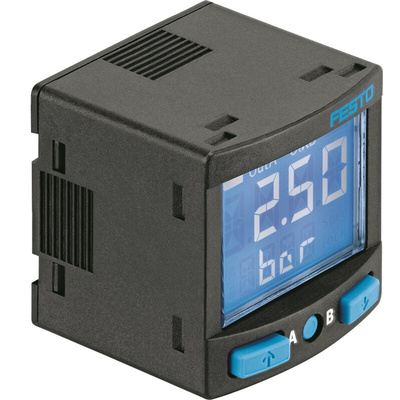

• Clear two-line display
• Pressure measuring range of 0 bar to 10 bar
• Maximum output current of 100 mA
• Operating voltage range of 15 to 30 V DC
• IO-Link communication interface
• Male G 1/8 thread and female M5 thread pneumatic connections
• IP40 rating for protection from small tools and wires
• Operating temperature range of 0°C to +50°C

Range Information

• Festo's cutting-edge SPAN series of sensors ensures maximum stability in compressed-air systems through the use of smart technology
• This range of units features adjustable low-pass filters for smoothing the pressure signal and an ECO function with the option to switch off the digital display
• The parameters of these sensors can be set remotely using an IO-Link master

Datasheet

SPAN-P10R-G18M-PNLK-PNVBA-L1 Specification Sheet

Instruction Sheet - SPAN-P10R-G18M-PNLK-PNVBA-L1
