SPAN-B2R-G18M-PN-PN-L1, Festo Pressure Switch 5bar, 15 → 30V, IP40 1 bar

Festo Pressure Switch, IP40 - SPAN Series - SPAN-B2R-G18M-PN-PN-L1

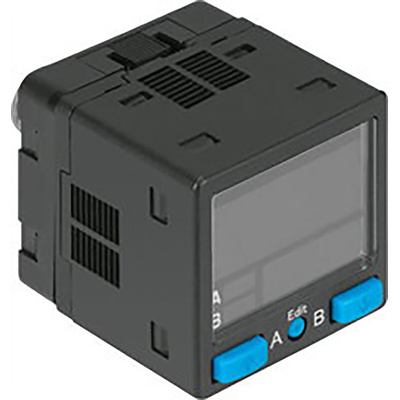

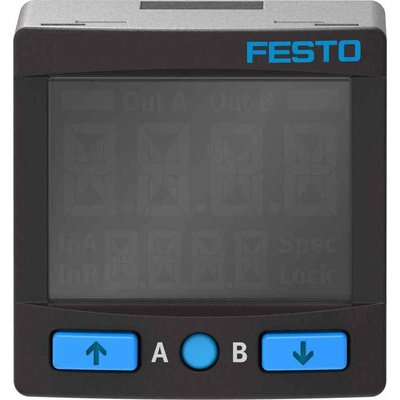

This compact Festo pressure switch is suitable for monitoring compressed air and non-corrosive gases in industrial environments. You can use this switch to set up a pressure threshold, a pressure range or a pressure difference using a teach-in function or by entering values. The system also allows you to scale the analogue output to increase the signal dynamics. Featuring an IO-link, it can communicate with a controller for remote monitoring and advanced diagnostics. A large and clear two-line display ensures quick and easy reading.

• IP40 rating for tamper protection against wires and screws
• Weight of 46 g
• Minimum operating temperature of 0°C
• Maximum operating temperature of +50°C
• Minimum operating pressure of -1 bar
• Maximum operating pressure of 1 bar
• Proof pressure of 5 bar
• Supply voltage of 15 V to 30 V

Range Information

• The SPAN series is Festo's compact and versatile range of pressure sensors
• Sensors are 30 mm x 30 mm in size with high-contrast displays
• They use a relative method of measurement based on a piezoresistive measuring cell
• Switchable electrical outputs provide versatility
• Choose from a wide range of mounting options (accessories sold separately)
