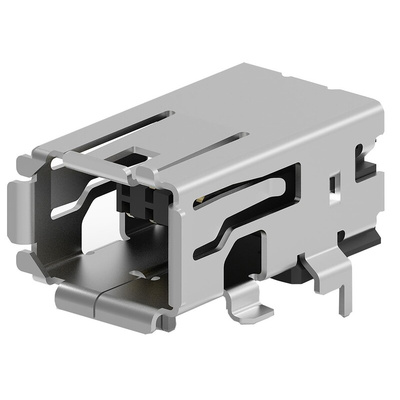

2294415-2, TE Connectivity Surface Mount Right Angle Mini I/O Connector Female, 8 Way, Shielded, Разъем

TE Connectivity Mini I/O Type I & Type II PCB Mount Headers

From TE Connectivity, a range of Mini I/O PCB mount side entry headers. The compact connectors are one-quarter the size of conventional RJ45 providing a 75% space saving solution freeing valuable board real estate. Designed with a two-point contact system the connectors unique locking feature ensures secure mating and prevents accidental unplugging in high vibration applications reducing valuable downtime. The Mini I/O connectors in this range are offered in both Type I and Type II profiles.

Features and Benefits

Small and compact
One-quarter the size of conventional RJ45
Vibration resistant
Shielded
Reliable connection, two points of contact

Applications

PLC’S
Motion and Drives
Robotics
Industrial Communications

TE Connectivity Industrial Mini I/O

Mini I/O type II PCB header drawing
