Eccel Technology Ltd RFID-B1(000323) RFID Module, 2.5 → 3.6V, Модуль

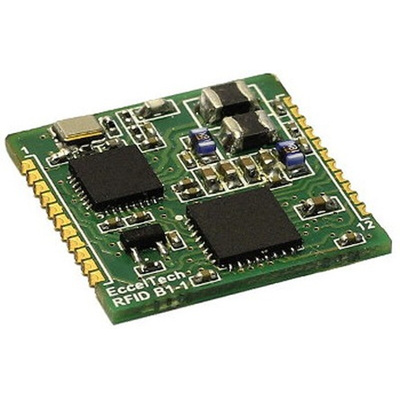

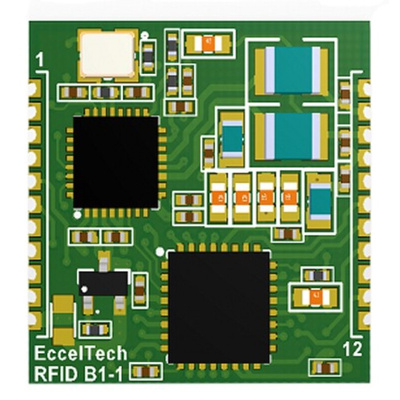

RFID-B1 Module

The RFID B1 module is a 13.56MHz sub assembly from Eccel Technology Ltd. The product is suitable for embedded applications and computing/ PLC platforms where RFID capability is needed. An on board is a low-power ARM microcontroller which helps manage the RFID configuration setup and provides a powerful command interface.

Features:

•Low-cost RFID Reader with Mifare Classic, Ultralight and NTAG2 support
• Command interface via UART with optional AES-128 encryption
• UART baud rate up to 921600 bps
• Compact form factor
• Castellated SMT pads for easy and reliable PCB mounting
• High transponder read and write speed
• Low-power design
• Single operating voltage: 2.5 V to 3.6 V
• -25°C to 85°C operating range
• 4 configurable GPIOs with interrupts
• 3 configurable PWMs
• Comparator
• ADC
• Current Output DAC
• AES-128 encryption engine
• Multiple internal reference voltages
• RoHS compliant

Applications:

• Access control
• Monitoring goods
• Approval and monitoring consumables
• Pre-payment systems
• Managing resources
• Connection-less data storage systems
