CX70M-24P2, Hirose Right Angle, SMT, Socket Type C 3.1 USB Connector, Разъем

Hirose USB-C Connectors

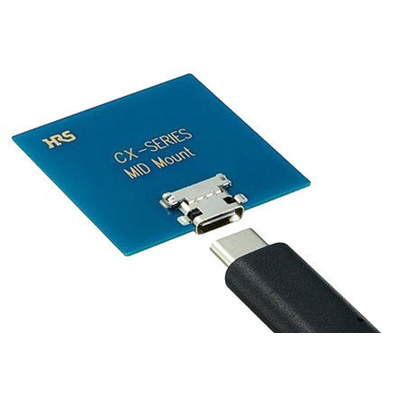

From Hirose, a range professional quality USB-C 3.1 compact connectors. The compact mid-mount connectors measure 8.35 mm (122-8553) and 7.95 mm (126-2195) in length making them ideal for use in areas with limited space. The USB-C 3.1, generation 1 receptacles can support up to 5 Gbit/s high-speed data transmission. The receptacles have the unique mating feature allowing for the plug to be connected in any direction first time every time ensuring fast and reliable connections. The USB-C hybrid friction lock connectors features both SMD and DIP mounting options which lends itself to various uses including repair applications.

Features and Benefits

Can be inserted in reverse, see terminal layout
Smaller in design making it ideal for new compact mobile devices
Hybrid type, supporting the repair market
High-speed transmission
Plug can be inserted in any direction

Applications

Smartphones
PC’S
Laptops
Tablets
Power packs and Chargers

CX70M-24-P2 USB-C drawing

CX70M-24-P2 USB-C specifications
