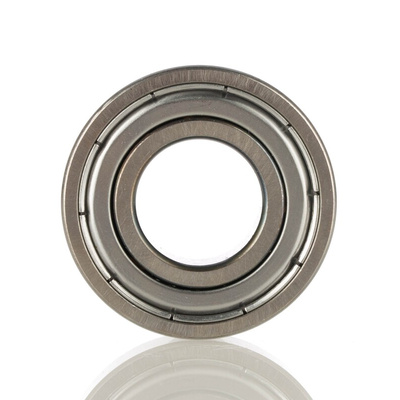

SKF 6202/16-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 16mm I.D, 35mm O.D, Шарикоподшипник

SKF Plain Race Deep-Groove Ball Bearing, 16mm ID, 35mm OD - 6202/16-2Z

Need a deep-groove ball bearing for use in extreme temperatures? This plain race bearing from SKF has an operating temperature range of -30°C to +150°C, meaning it can handle use in harsh environments. As it's a deep-groove unit, it doesn't need much maintenance and is capable of supporting a small axial load alongside a radial load. The outer shield helps retain the lubricant around the balls and serves as a slinger that evenly distributes the oil or grease to the inner ring.

• Parallel bore means you can fit it directly onto a shaft without the need for a bearing sleeve
• Steel balls are robust and stand up to high loads and fast rotations
• Steel race and cage combine strength with resistance to corrosion, so the unit can be used in damp or humid conditions

Applications

• Agricultural machinery
• Food processing industry
• Machine tools

When would I use a shielded ball bearing?

Shielded ball bearings are particularly suited to applications where leakage of the lubricant would damage the product being made by your machinery. Compared with sealed ball bearings, shielded ball bearings allow faster operation, but offer more limited protection against dust and dirt.
