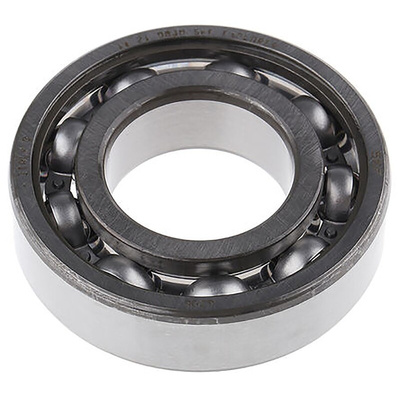

SKF 6204/C4 Single Row Deep Groove Ball Bearing- Open Type 20mm I.D, 47mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, 20mm ID, 47mm OD - 6204/C4

Looking for a way to move radial or axial loads in both directions and at very high speeds? Try this ball bearing from SKF. Its deep-groove design gives it low-friction properties, meaning it needs no lubricant to rotate smoothly and is reliably low maintenance. An internal clearance rating of C4 ensures the rolling parts move freely between the component's two rings. This lets it safely achieve a limiting speed of up to 20,000 rotations per minute so you get the mechanical robustness you need for high-speed tasks. The rugged carbon-rich steel used for the balls means you can rest assured the unit is hard enough to resist wear, making it practical for industrial rolling applications in harsh settings.

Features & Benefits

• Part of SKF Explorer class, so safe and long-lasting in high power-density applications
• Protective steel bearing cage minimises wear for less frequent servicing
• Reference speed of 32,000r/min indicates safe maximum speed to help you avoid thermal degradation

Applications

• Flow meters
• Anemometers
• Handheld power tools

What does this bearing's dynamic load rating mean?

This product's dynamic load rating of 13.5kN indicates that the bearing tolerates very high forces when in motion, so it's suitable for use with heavy loads.

Deep Groove Ball Bearings

Datasheet

SKF Bearing Designations

Datasheet - 6204/C4
