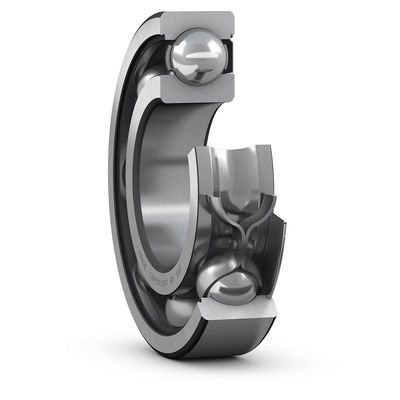

SKF 6204-Z/C3 Single Row Deep Groove Ball Bearing- One Side Shielded 20mm I.D, 47mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, Open Ends, 20mm ID, 47mm OD - 6204-Z/C3

For precise positioning and reduced friction on moving parts of your equipment, choose this deep-groove ball bearing from SKF. It's designed to rotate along with your machine's shaft, enabling smooth movement. Made of steel, it's durable enough to withstand the strain that comes with industrial use over long periods. The open-ended design allows for easy lubrication and quick visual inspection during operation. With an inside diameter of 20mm, this bearing is a practical choice for medium-sized shafts.

• Comes with a shield on one side to keep in lubricant and block out contaminants for a prolonged lifespan
• Dynamic load rating of 13.5kN and static load rating of 6.55kN for heavy-duty applications
• Can handle both axial and radial loads for versatility
• Wide operating temperature range of -30°C to +150°C for use in demanding conditions

Applications

• Agricultural machinery
• Wind turbines
• Material handling equipment

What's the operating speed of this bearing?

This bearing has a limiting speed of 20,000r/min and a reference speed of 32,000r/min, making it suitable for use in fast-paced applications.

What's a non-contact seal?

A non-contact seal, like the one used for this bearing, doesn't physically touch the rotating or stationary parts of the unit, which reduces friction and wear.
