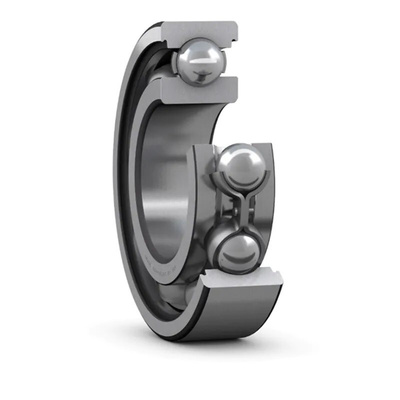

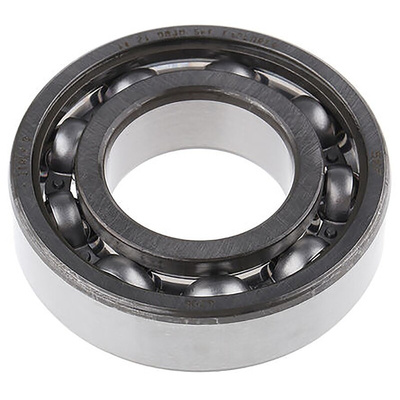

SKF 63/22 Single Row Deep Groove Ball Bearing- Open Type 22mm I.D, 56mm O.D, Шарикоподшипник

SKF Ball Bearing, Deep-Groove Bearing Type, 9.3kN Static Load Rating, 22mm ID, 56mm OD - 63/22

Need a low-maintenance solution to support rotating parts of your industrial equipment? Look no further than this deep-groove ball bearing from SKF. It proves big things can come in small packages, as it delivers a static load rating of 9.3kN and a dynamic load rating of 18.6kN in a compact 56mm wide body. As the unit's made entirely of steel, it's a sturdy option for harsh environments as it doesn't give in to corrosion and impact.

Features & Benefits

• Limiting speed of 18,000r/min and reference speed of 28,000r/min for use in fast-paced applications
• Can handle axial and radial loads in both directions for versatility
• Open-ended design makes it easy to inspect and lubricate without dismantling

Applications

• Agricultural equipment
• Industrial motors
• Process and packaging plants

How do I mount this ball bearing?

To mount this bearing, you'll need the impact ring, sleeve and mallet from the SKF fitting tool kit (732-4738). Place the new bearing on the shaft, ensuring the shaft itself isn't damaged or worn. Place the impact ring and sleeve on the bearing and tap on the sleeve until the component is in place. Some light oil on the shaft can make this process easier.
