PUN-6X1-RT, Festo Compressed Air Pipe Red Polyurethane 6mm x 50m PUN Series, 178411, Шланг

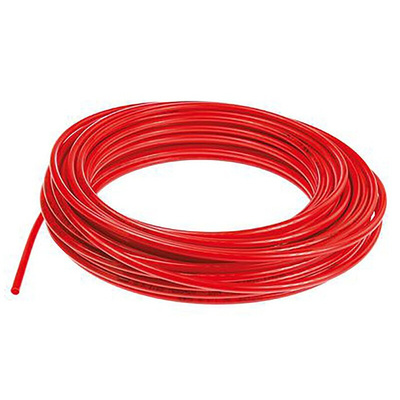

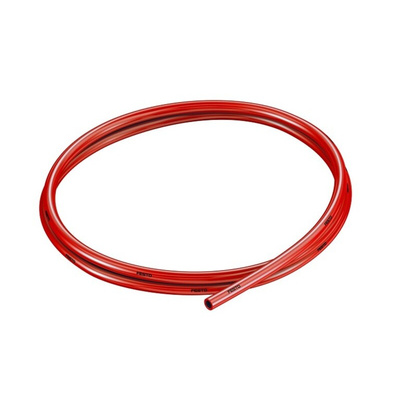

Festo Red Polyurethane Air Hose, 50m Length, 6mm OD - PUN-6X1-RT

Use this red hose from Festo to carry compressed air in your workplace. It's made from polyurethane, so it has a lot of flexibility. This makes it practical for use in energy chains and pneumatic applications with high cycle rates. The hose has an external diameter of 6mm and an internal diameter of 4mm, making it compatible with standard fittings. At 50m long it's capable of transporting air over large distances, or you can cut it to size to suit your application.

• Broad operating temperature range between -35°C and +60°C for use in demanding industrial environments
• Wide operating pressure range between -0.95 bar and 10 bar for low-pressure and high-pressure use
• Free from copper and PTFE (polytetrafluoroethylene) to enhance workplace safety
• 26.5mm bend radius, so it will continue to perform well even when positioned around corners

Applications

• Pressure and flow sensing applications
• Medical equipment
• Automotive industry
• Aerospace engineering
• Food processing

Is this hose capable of handling anything other than compressed air?

Yes, although the tube is well-suited to transporting compressed air, you can also use it to send water and other vacuum-operating media.

Datasheet

PUN-6X1-RT Specification Sheet
