PEN-4X0,75-BL, Festo Air Hose Blue PE 4mm x 50m PEN Series, Шланг

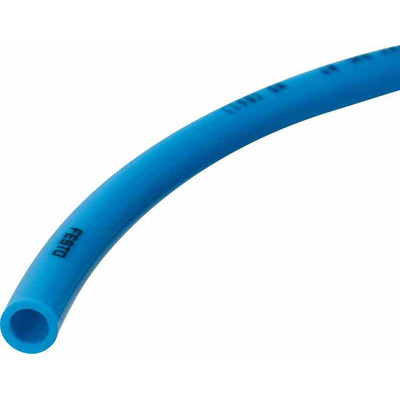

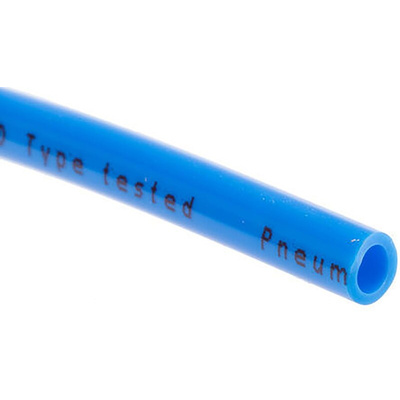

Festo PEN Series Polyethylene Tubing

FESTO PEN series polyethylene tubing offers high level of abrasion resistance and its suitable for a wide range of tasks. Flexible thanks to highly resistant materials and it is easy to install.

Polyethylene tubing is distinguished by its high resistance to chemicals and hydrolysis. It is also resistant to most cleaning agents and lubricants.

• Compressed air in accordance with ISO 8573¬1:2010


• Ambient temperature: -20°C to + 60°C


• Operating pressure: -1 to +8 bar

PEN-4X0,75-BL from FESTO is standard O.D (outside diameter) tubing, for QS (quick star) plug connectors, CN and CK fittings.

Features and Benefits

• Superior quality pneumatic fitting


• Resistant to most cleaning agents and lubricants


• Tubing characteristics – Suitable for energy chains in applications with high cycle rates


• Operating medium - Compressed air in accordance with ISO8573-1:2010 [7:-:-]


• Tubing test conditions - Suitable for energy chains; more than 5 million cycles to FN 942021


• Product weight according to length - 0.00643 kg/m


• Pneumatic connection – for push-in connector outside diameter 4 mm


• Pneumatic connection - for barbed connector internal diameter 3 mm with nut


• Shore hardness - D 52 +/-3


• Materials - Conforms to RoHS, free of copper and PTFE (Polytetrafluoroethylene)

Note

Not approved for use in the food industry.

Datasheet

PEN-4X0,75-BL Specification Sheet
