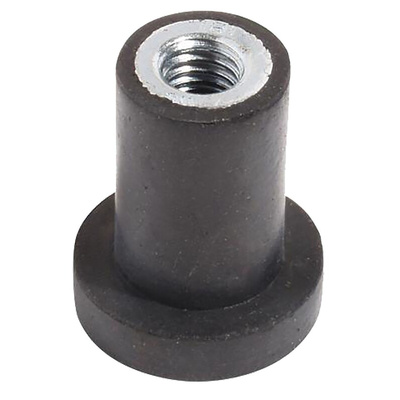

RS PRO Cylindrical M6 Anti Vibration Mount with 14kg Compression Load

RS PRO Cylindrical M6 Zinc Plated Steel Anti-Vibration Mount 0.9-14 Compression Load 12.7 mm Dia. Natural Rubber

This cylindrical anti-vibration mount from RS PRO is ideal for supporting small devices and preventing them from shaking during operation. Simply screw it onto a threaded rod or bolt on your device for fast and easy installation.
The rubber material of this mount ensures electrical isolation, meaning there's no need to worry about the transfer of excess static charge to or from other systems. The thread is made from zinc-plated steel for resistance to corrosion, making this a long-lasting choice in harsh industrial environments. Thanks to the mount's small size, it's a good option for compact spaces.
A cylindrical anti-vibration mount like this one is commonly found in automotive and industrial applications. You'll find it used to mount diesel engines, control panels and generator sets.

Features and Benefits

• Compression load of 0.9 to 14 kg
• Diameter of 12.7 mm
• Foot height of 17 mm
• Overall height of 18 mm
• Black foot colour
• Cylindrical foot shape
• Natural rubber material
• Maximum operating temperature of +100°C
• Zinc-plated steel metalwork
• Screw-in mounting type
• Shore hardness of 60 Shore A
• Static load capacity of 0.9 to 14 kg
• M6 thread size
