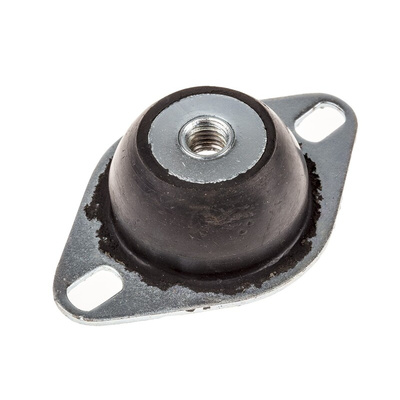

RS PRO Round M10 Anti Vibration Mount with 40kg Compression Load

RS PRO Round M10 Zinc Plated Steel Anti-Vibration Mount 40 Compression Load 85 mm Dia. Natural Rubber

Choose this flange mount from RS PRO when you need a way to support devices and protect them against vibration. The rubber cone design absorbs low-frequency vibrations and sound, keeping your equipment safe and reducing noise in your work environment.
The mount is designed for use with small static loads of up to 40 kg. It has a rubber and zinc-plated steel construction that's resistant to corrosion, meaning it will hold up in harsh environmental conditions. The flange design means you can securely fasten this mount to your equipment with an M10 screw.
You'll find this mount used for reducing vibrations in equipment such as fans, pumps or stationary generator sets. It's also suitable for use with security cameras, computers and vibrating screens.

Features and Benefits

• Compression deflection of 4.5 mm
• Compression load of 40 kg
• Diameter of 85 mm
• Foot height of 25 mm
• Overall height of 25 mm
• Black foot colour
• Round foot shape
• Natural rubber material
• Maximum operating temperature of +100°C
• Zinc-plated steel metalwork
• Shore hardness of 60 Shore A
• Static load capacity of 40 kg
• M10 thread size
