RS PRO Round M12 Anti Vibration Mount with 330 Compression Load

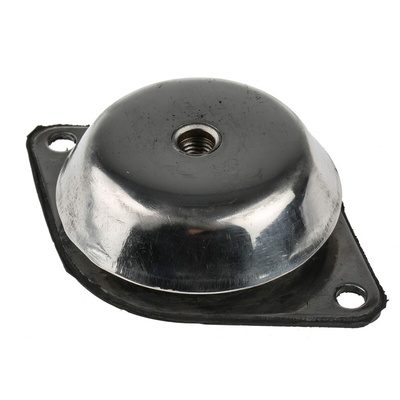

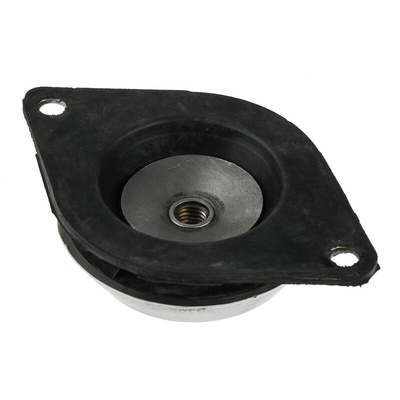

RS PRO Round M12 Stainless Steel Anti-Vibration Mount 330 Compression Load 144 mm Dia. Natural Rubber

This anti-vibration mount from RS PRO dampens vertical vibrations and reduces noise. You can use it to mount equipment weighing up to 330 kg, so it's a good choice for stabilising heavy devices.
The flanged design makes for easy mounting thanks to a central screw hole for attaching your equipment. The internal rubber material will absorb shock and noise to minimise vibration. Its corrosion-resistant metal dome offers additional protection from splashes of oil or fuel, making this a long-lasting choice for use in harsh environments.
This mount is ideal for use in railway equipment, gearboxes and marine engines. It's commonly used to support pumps, compressors and other electronic components.

Features and Benefits

• Compression deflection of 3 mm
• Compression load of 330 kg
• Diameter of 144 mm
• Foot height of 36 mm
• Overall height of 36 mm
• Black foot colour
• Round foot shape
• Natural rubber material
• Maximum operating temperature of +100°C
• Stainless steel metalwork
• Shore hardness of 60 Shore A
• Static load capacity of 330 kg
• M12 thread size
