RS PRO M6 Anti Vibration Mount, Male to Male Bobbin with 22kg Compression Load, Виброопора

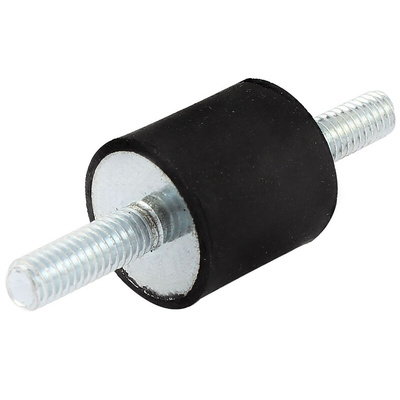

RS PRO M6 Zinc-Plated Steel Anti-Vibration Mount 22 Compression Load 20 mm Dia. Natural Rubber

Use this RS PRO anti-vibration mount to protect your machinery from vibrational forces. It absorbs shock to minimise wear and tear, improving the service life of your equipment and reducing maintenance.


For easy installation, simply screw each end of this male-to-male mount into a compatible female M6 thread. The zinc-plated steel and rubber materials make the unit highly durable and corrosion-resistant, so it can withstand demanding applications in harsh environments.


The mount is suitable for use with a range of machines and torques as you can use it to protect against both shear stress and compressive tension. It's commonly used to mount motors, compressors and large static generator engines.

Features and Benefits

• Male-to-male bobbin


• Anti-vibration mounting type


• Compression deflection of 2 mm


• Compression load of 22 kg


• Shearing load of 8.4 kg


• Diameter of 20 mm


• Overall height of 20 mm


• Natural rubber material


• Zinc-plated steel metalwork


• Minimum operating temperature of -25°C


• Maximum operating temperature of +70°C


• Shore hardness of 60 Shore A


• M6 thread size
