RS PRO M12 Anti Vibration Mount, Female Buffer Foot with 757kg Compression Load, Виброопора

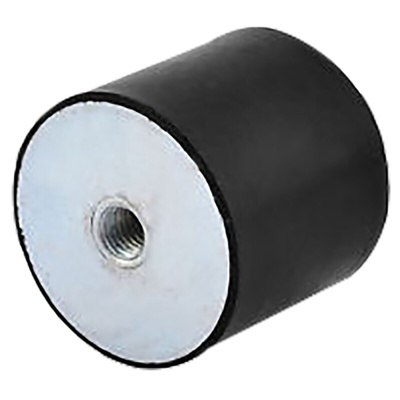

RS PRO M12 Zinc-Plated Steel Anti-Vibration Mount 757 Compression Load 80 mm Dia. Natural Rubber

This RS PRO anti-vibration mount offers sturdy support to protect your appliances from vibrations. It's easy to attach your equipment thanks to the two female threads. Simply use a male threaded M12 screw to firmly secure your device in place on the mount.


The mount's zinc-plated steel and rubber material means it's corrosion-resistant and long-lasting, so it can withstand heavy-duty applications. The rubber also provides complete electrical insulation, so it will protect your equipment from the buildup of static charge. The unit is compact enough for use in confined spaces yet robust enough to support compressive loads of up to 757 kg, so it's a good choice for extremely heavy equipment.


This product is often found in automotive and industrial environments. You can use it to stabilise control panels, motors or compressors.

Features and Benefits

• Female buffer foot


• Female to female type


• Compression deflection of 3 mm


• Compression load of 757 kg


• Diameter of 80 mm


• Overall height of 30 mm


• Natural rubber material


• Maximum operating temperature of +70°C


• Minimum operating temperature of -25°C


• Zinc-plated steel metalwork


• Shore hardness of 60 Shore A


• Shearing load of 216 kg


• M12 thread size
