RS PRO M3 Anti Vibration Mount, Male Buffer Foot with 5.5kg Compression Load, Виброопора

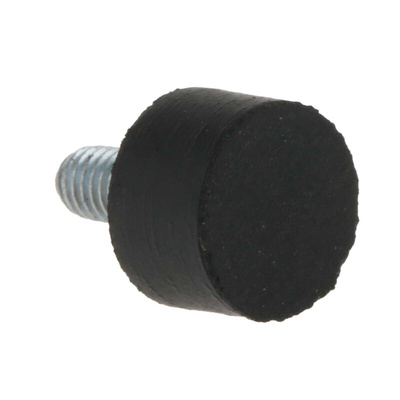

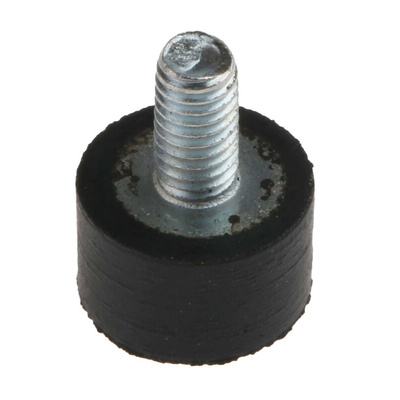

RS PRO M3 Zinc Plated Steel Stud Mount 5.5 kg Compression Load 8 mm Diameter, Natural Rubber

The RS PRO flat foot stud mount is often used in compression applications and helps to prevent excessive vibration by acting as a cushion between two working parts. This male anti-vibration mount has a maximum compression load of 5.5 kg and a thread size of M3.

The component provides effective vibration absorption and is made from natural rubber and zinc-plated steel. Its rubber coating makes it resistant to abrasion and low temperatures and helps protect against corrosion of the mount’s metal parts. Flat buffers such as this one have a variety of mounting configurations and are easy to install.

Besides reducing vibration and excessive noise, anti-vibration mounts also increase the longevity of a machine’s lifespan and extend the time between maintenance periods. They're often used to remove unwanted noise and vibration in compressors, fans, vehicles and other industrial equipment.

Features and Benefits

• Zinc-plated steel stud mounting
• Coated in natural rubber
• Compression deflection of 0.5
• Compression load of 5.5 kg
• Thread size of M8
• Male-only thread
• Diameter of 8 mm
• Overall height of 5 mm
• Operating temperature range of -25°C to +70°C
