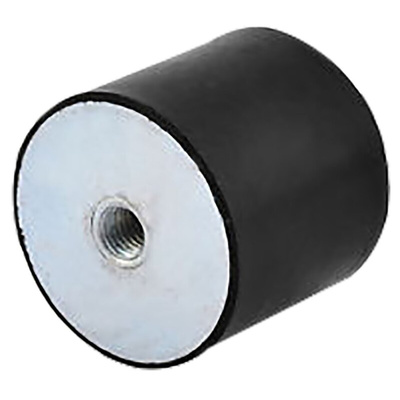

RS PRO M10 Anti Vibration Mount, Female Buffer Foot with 306kg Compression Load, Виброопора

RS PRO M10 Zinc-Plated Steel Stud Mount 306 Compression Load 50 mm Dia. Natural Rubber

Need a simple way to support your equipment and protect it against vibration? Choose this anti-vibration mount from the RS PRO range. It can handle a compression load of up to 306 kg, so it's a good choice when you need to stabilise heavy equipment.
The mount has a female-to-flat foot design, so you can screw your device in with a male M10 screw and rest it on the foot. It has zinc-plated steel metalwork for strength and corrosion resistance, making it suitable for heavy-duty applications in demanding conditions. The rubber material that surrounds the steel thread also provides electrical insulation to keep your equipment safe from static buildup.
The product is ideal for use with engine mounts, compressors or motors. You can also use it as a bump stop to prevent impact between two moving pieces of equipment or to ensure that a panel door closes gently.

Features and Benefits

• Female buffer foot anti-vibration mounting type
• Compression deflection of 1.5 mm
• Compression load of 306 kg
• Diameter of 50 mm
• Overall height of 15 mm
• Natural rubber material
• Zinc-plated steel metalwork
• Minimum operating temperature of -25°C
• Maximum operating temperature of +70°C
• Shore hardness of 60 Shore A
• M10 thread size
