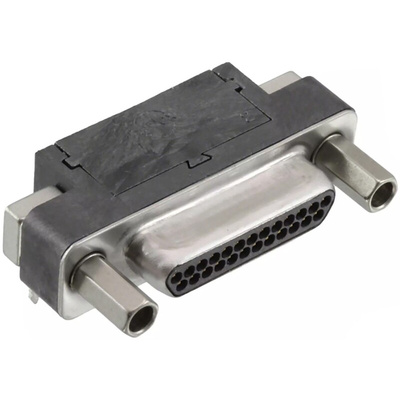

836149016, Molex CMD 25 Way Through Hole D-sub Connector Plug, 1.27mm Pitch, Разъем

Molex Commercial Micro D-Sub PCB Mount Connectors

From Molex, the next generation in commercial Micro-D-Sub connectors. These Micro D PCB mount plugs are 4 times the density of standard D-Subs. An ideal space saving solution for the ever demanding industrial data markets. The robust connectors feature a metal interface and grounding tabs with a 1.27mm centre line spacing. Available in right angle and vertical options. Complete with jack posts.

Features and Benefits

Improved space saving on PCB board
Rugged robust design
High density 1.27 mm pitch
Metal interface and grounding tabs
Wide operating temperature range -40°C to +125°C

Applications

Medical
Industrial automation
Data/communications
Commercial Vehicle

Molex high Density Micro D-Subminiature Connectors

25 way micro d-sub PCB plug drawing

25 way micro d-sub PCB plug features and benefits

25 way micro d-sub PCB plug specifications
