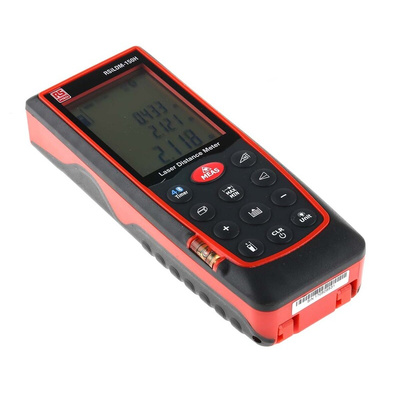

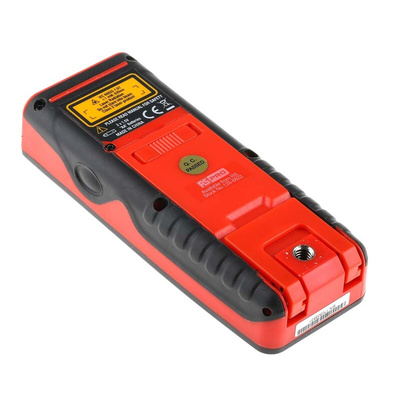

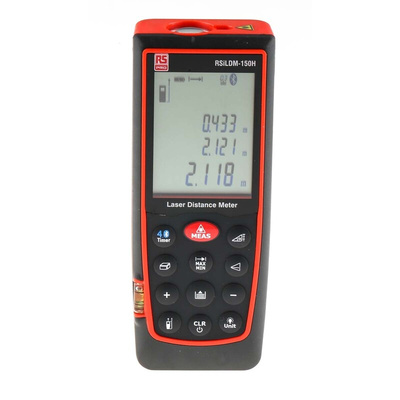

RS PRO ILDM-150H Laser Measure, 0.05 → 70m Range, ± 1.5 mm Accuracy

RS PRO LCD Distance Meters, Bluetooth and Wifi Enabled

A conventional tape measure is reliable, but an old school source of information. To save time, money and put accuracy to the next level, you need a reliable measurement to keep up with your increasing requirements.

We are proudly introducing our own branded RS PRO LCD Measure Meters distance where only one hand is occupied while using the device, instead of two while using traditional tape. You are getting quick, non-contact measurement figures for height, distance or angles in seconds, so you can focus on other small or big tasks.

Our Laser Measure has a rating of IP54, meaning protection against dust ingress to prevent the product from limited capacities while securing potential splashes of water from any angle. The device allows direct and indirect measurements where access to the target is difficult to reach. Automatic storage of the last 20 measurement results is handy and intentionally designed by us with LCD and battery status indicator.

The innovative automatic shutdown functionality when the Measure Distance device is not in use after 3 minutes is significantly extending your battery life and making a small, but vital step towards greener Planet.

Navigation of the map is intuitive and making quick calculations or to determine the maximum, and minimum values are just a click of a bottom. Measure distance between points has never been more effortless, thanks to immediate or long-term (tracking) measurement of the distance to the target (length).

This lightweight of 100 g and the pocket-sized measure is an advantage when travelling. Our measuring item is classified as 2, which means it is considered safe for regular operation.

Features and Benefits

• Record up to 20 points of reference without having to move back-and-forth


• Fairly lightweight (203 g), pocket-sized digital measure for easy transportation


• Battery display with automatic shutdown build-in function after inactivity of 3 minutes


• User-friendly and intuitive set up to navigate the map quickly and efficiently to get the distance between the two


• Determination of the maximum and minimum values feature


• Addition and subtraction of indications


• Laser pointer targets to avoid costly mistakes


• LCD status indicator


• Rating of IP 54, giving you protection against dust ingress


• Unlike traditional tape measure, the modern RS PRO Measurer is offering you as a standard distance calculator to help you make a formal decision


• Offers shortcut keys for addition


• Indirect Measurement Using Tilt Sensor


• Bluetooth with APP Support (Meterbox Pro)

Applications

The range of LDM Distance Meter is designed for indoor applications and are commonly used by:

• Surveyors


• Builders


• Handy Workers

Frequently asked questions

How does the Laser Distance Meter work?

Most simplistically, the Laser Distance Meter sends a pulse of laser light to your desired place and measures the time back. Our device is giving you measurement range of 0.05 up to 70 m with a small margin of error ±1.5 mm.

Why RS PRO?

RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.
