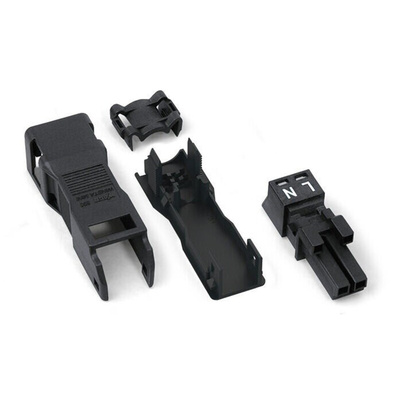

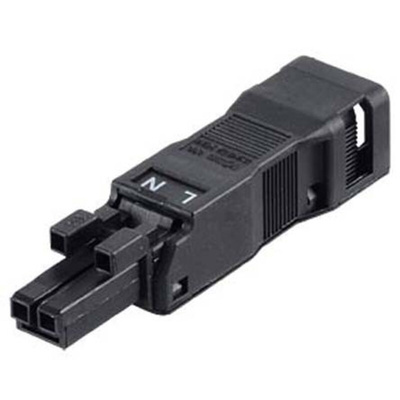

890-102, Wago 890 Series WINSTA MINI Socket, 2-Pole, Female, 2-Way, Cable Mount, 16A, IP40

Wago Lighting Connector, Copper Alloy Contact Material, Push-In Termination Method - 890 Series - 890-102

When you need to hook up electrical components in a flash, turn to this lighting connector from Wago. This socket's ultra-compact size of 13.2 (H) x 15.6 (W) x 61.6mm (D) makes it a shoo-in for use in tight spaces. Built-in protection against mismating improves wiring accuracy and minimises the risk of damage. It's a breeze to install this unit, thanks to its plug-and-play design. Simply insert your lighting cable directly into the connector's female socket. A push-in cage clamp spring-pressure mechanism keeps everything dependably in its place, even in the event of heavy vibrations.

Features & Benefits

• Highly conductive copper alloy contacts for a reliable connection
• IP40 rating means it's protected against objects larger than 1mm in size
• Voltage rating of 250V for compatibility with low-power equipment
• Accepts conductor sizes between 0.25 and 1.5mm² for flexibility

Applications

• Commercial lighting systems
• Warehouse manufacturing
• Transportation cables

Does this product's housing have strain relief?

Yes, it does. The strain relief housing protects the wire from damage due to excess bending, giving you long-lasting service.

WINSTA® Mini Range of connectors

Datasheet
