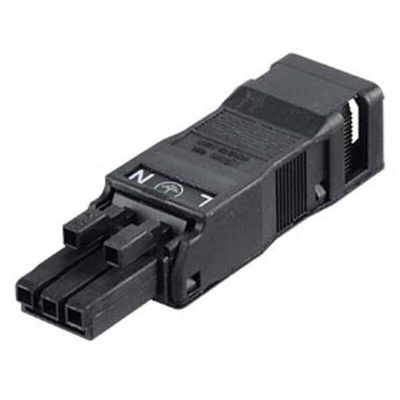

890-103, Wago 890 Series WINSTA MINI Socket, 3-Pole, Female, 3-Way, Cable Mount, 16A, IP40

Wago Lighting Connector, 250V Voltage Rating, Strain Relief - 890 Series - 890-103

For secure wiring in small spaces, this lighting connector from Wago is right on point. A three-pole design lets you hook up multiple wires at once, making the unit a top choice for complex grid lighting installations. It's a good fit for everyday equipment, thanks to a 250V voltage rating. The component uses cage clamps, which push aside the need for screws and use pressure to hold connectors securely in place. Just plug your cable into the socket for a speedy and tool-free connection.

Features & Benefits

• Colour-coded mismating protection reduces errors and minimises the risk of damage
• A-coded for use with general mains applications
• Strain relief protects cables from wear for long-lasting use
• IP40 rating means it's protected against objects larger than 1mm in size
• Compact dimensions of 14 (H) x 17.9 (W) x 63.6mm (D) for installation in tight spots

Applications

• Flush-mount commercial lighting
• Power grids
• Industrial machinery and packaging

What wire sizes can I use with this lighting connector?

For flexibility, this component is compatible with a wide range of cable sizes, including 22 to 16AWG for solid conductors and 22 to 18AWG for stranded conductors.

WINSTA® Mini Range of connectors

Datasheet
