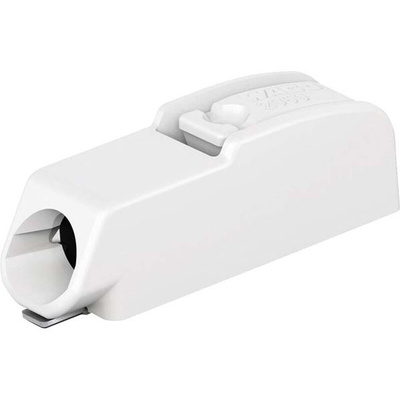

2060-451/998-404, Wago 2060 Series PCB Terminal Block, 1-Pole, Female, 1-Way, PCB Mount, 9A

Wago Terminal Block Tape and Reel Series 2060

These Wago series 2060 terminal blocks have a flat, low profile design and are ideal for both manual and automated wiring systems. Wires are secured by a sprung Cage Clamp® mechanism that accommodates single strand and multi-strand cables fitted with ferrules.
The blocks can be placed side-by-side to produce multiple way connectors while maintaining pitch.

Features and Benefits

• Height of 4.5 mm
• 4 mm Pin spacing
• Terminates conductors from 24 AWG to 18 AWG (0.2 – 0.75 mm²)
• Direct push in of solid conductors
• Push buttons for easy connection and removal of all types of conductors
• Available in 1-, 2- and 3-pole configurations
• Group arrangement is possible without losing any poles
