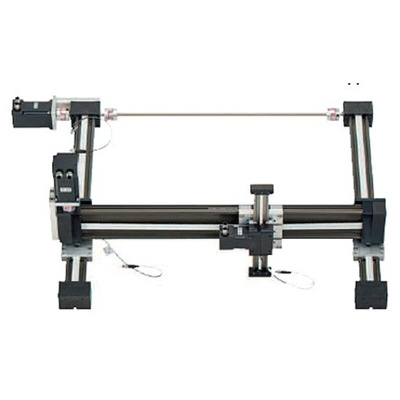

DLE-RG-0001, Igus Gantry Robot 3 Axis, 500 x 500 x 100mm

1268963
Номер производителя: DLE-RG-0001Производитель: Igus
Цена за 1 коробку
452661.12 руб. *

Срок поставки: 4-6 недель

+

* Цена с НДС справочная. Возможно ее увеличение на стоимость доставки по России и сертификации.

Igus Drylin® E Gantries

Gantries are a combination of several linear axes designed to implement a multidimensional movement. Automating tasks with the Igus gantry enables lower costs and shorter production times. For the most varied tasks, Igus offers gantries as flat gantry, line, and room gantry. igus®-gantries include pre-configured drylin® linear modules/axes with NEMA stepper motors and all the components necessary for self-manufacturing.

Features and Benefits

•Drive: Toothed belt and toothed rack
•Quick assembly
•Defined stroke lengths
•No external lubrication
•Clean, corrosion–free operation

Line Gantries

The Igus line gantry can be used for loads up to 2.5 kg, precision requirements up to 0.2 mm at speeds up to 1 m/s. They are easy to install and are ideal for pick and place applications, sorting plants and micro electronics.

Flat Gantries

The Igus flat gantry can be used for loads up to 30 kg, precision requirements up to 0.5 mm and speeds up to 1.5 m/s. They are easy to install and are ideal for measurement and testing automation.

Room Gantries

The Igus room gantry can be used for loads up to 2.5 kg, precision requirements up to 0.8 mm and speeds up to 0.5 m/s. They are easy to install and are ideal for easy and small part handling tasks, medical technology and testing automation.

Igus Robot Gantries

Техническая спецификация
pdfCatalogue Linear Robots
pdfDryve Control Flyer
pdfOperating_Manual_dryve_D1_ENG
pdfUK_linearrobots_260417
Количество осей:
3
Конфигурация:
X/Y/Z
Ось перемещения X:
500mm
Ось перемещения Y:
500mm
Ось перемещения Z:
100mm
Полезная нагрузка:
2.5kg
Прецизионность:
0.8mm
Рабочая зона:
500 x 500 x 100mm
Скорость максимальная:
0.5m/s
