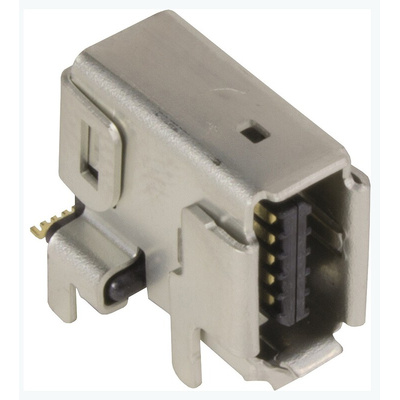

09452812560333, Harting IX Industrial Series Male IX Industrial Connector, PCB Mount, Cat6a, Разъем

Harting Industrial IX Cat6A Jack Connectors

From Harting Connectors, the IX Industrial connection system, providing an essential miniaturisation solution for 4.0 and the IoT. The robust 10 way jacks are 70% smaller than conventional RJ45 connectors making them ideal for applications where board space is limited. With Cat6a performance for 1/10 Gbit/s Ethernet, Harting Industrial IX receptacles are a vital component for all Ethernet interfaces in the IP20 environment. The Harting IX connectors feature five THR shielded contacts ensuring maximum stability on the PCB. In addition, the fully shielded jacks have two snap-in metal hooks ensuring the receptacle and connector successfully mate. Confirmed with an audible clicking sound. Harting rugged IX receptacles are designed and tested for 5000 mating cycles. Guaranteeing a secure vibration and shock proof connection.

Features and Benefits

• Compact – 70% smaller that standard RJ45 connectors
• Cat6a performance for 1/10 Gbit/s Ethernet
• Robust construction – 5 THR shielded connection points
• Two snap-in metal connection hooks ensuring secure connection between • Receptacle and plug
• Audible click when successfully mated
• Resistant to vibration and shock – tested up to 5000 mating cycles

Applications

• Data networks
• Automation
• Machinery and robotics
• Energy
• Transportation

Harting Range

IX Industrial Cat6a 10 pole SMD jack drawing

Harting IX Ranger Overview Flyer
