041, Red Pitaya STEMLab125-14 STEMlab Series Analogue PC Based Oscilloscope, 2 Analogue Channels, 40MHz

1271089
Номер производителя: 041Производитель: Red Pitaya
Цена за шт.
214406.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Red Pitaya PC Based Oscilloscope Calibrated Diagnostic Kit

The Red Pitaya STEMLab 125-14 PC based 40MHz oscilloscope calibrated diagnostic kit consists of various Red Pitaya hardware. It has 2 analogue channels and 14bit input/output channels for highly accurate measurement results in a professional environment. It consists of test and measurement Instruments like the Oscilloscope signal generator, spectrum analyser, and bode analyser. Access to the Red Pitaya marketplace which is a place where free of charge open-source applications developed by red Pitaya community members are available within a single click for immediate experience and use.
Development and learning tools feature MATLAB/LABVIEW remote control possibility to create own app (open source code available

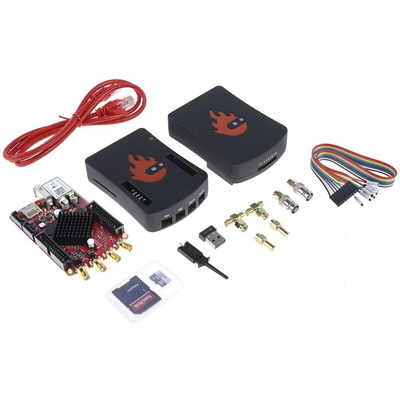

Supplied with

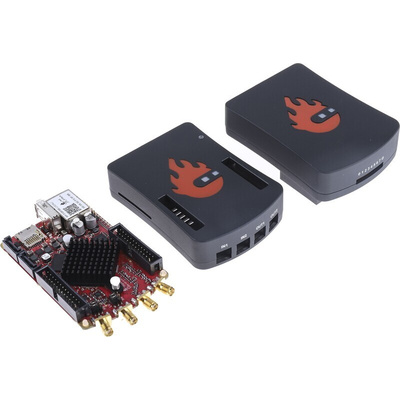

1 x STEMlab 125-14 board- calibrated
1 x 2A, 5VDC Interchangeable power supply
1 x 4GB, class 10 SD card
1 x 1m ETH cable
2 x Oscilloscope probes
2 x SMA to BNC adapters
2 x 50ohm termination
2 x T part
1 x Logic analyser pro licence key

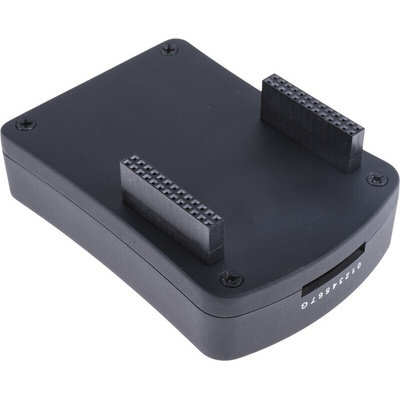

1 X Logic analyser HW in ALU case,
1 x Wi-Fi USB module

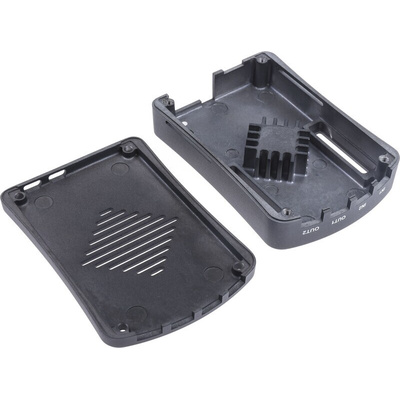

1 x Aluminium case for STEMlab board

Features and Benefits

Available RAM of 512MB(4GB)
Power Consumption up to 5V, 2A max
Sample random rate is 125MSa/s
The bandwidth of oscilloscope is 40MHz

Applications

Audio and video recording equipment
Designing
Research & Development
Testing in manufacturing
Testing of signals voltage in radio broadcasting equipment
Testing signal voltage in-circuit debugging

Certifications

CE compliant
FCC compliant

Техническая спецификация
pdfRed Pitaya STEMLab125-14 calibrated diagnostic kit
Интерфейс:
IIC, SPI, UART, USB
Источник питания:
Micro USB
Количество аналоговых каналов:
2
Полоса - ширина:
40МГц
Серия:
STEMlab
Тип осциллографа:
PC Based
Цифровой/аналоговый:
Аналоговый
Частота дискретизации Random:
100 Ksps, 125 Msps
