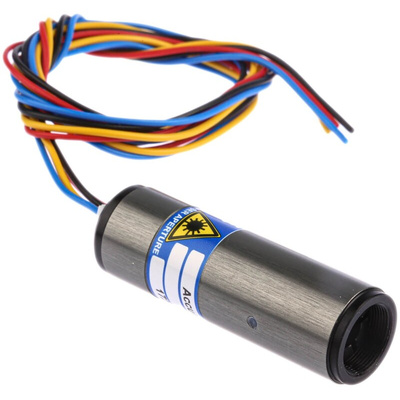

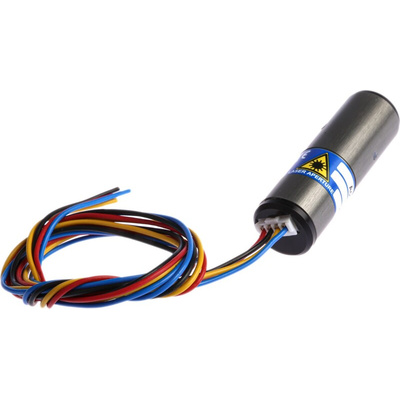

Global Laser 1421-93-000 Laser Module, 520nm 5mW, Modulating, PWM control Dot pattern, Лазерный модуль

Acculase DD PWM Green Laser Modules

The Global Laser Acculase range of Direct Drive PWM green LED laser diode modules provides a high level of optical and electrical performance at an economical price. These lasers offer high beam quality, efficiency, stability and a long operating lifetime making them suitable for a wide range of demanding applications. Accurate beam alignment with the outer sleeve of the modules during manufacture ensures fast and easy initial set-up and use. The intensity of the laser can be PWM controlled via a TTL control signal and an enable signal can be used to turn the laser on and off. S lens types produce an elliptical beam or focussed spot; C2 lens types produce a circular beam or focussed spot.

High visibility 520nm green LED laser module
High bore sight accuracy < 1mRad
Internal driver circuitry
5V TTL PWM input
Digital Enable input
Electrically isolated case
Reverse polarity protected

Warning

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the product datasheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Laser Modules, Global Laser

Direct Drive Green PWM Laser Diode Modules

Acculase Green PWM Laser - User Guide
