LZ2H6X5BD, Schneider Electric Reversing Starter, Reversing, 3 kW, 1.5 → 6.5 A

1271775
Номер производителя: LZ2H6X5BDПроизводитель: Schneider Electric
Цена за шт.
49126.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

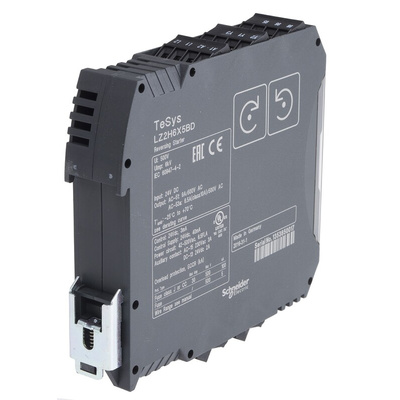

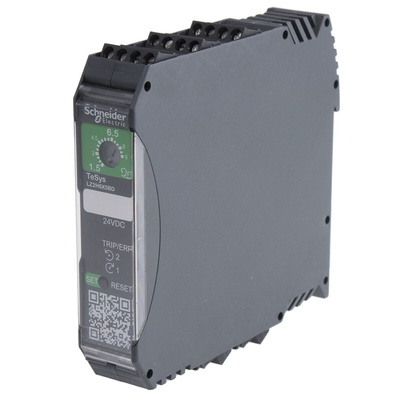

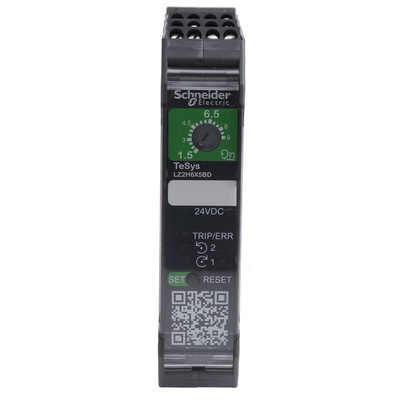

Schneider Electric Reversing Motor Starter, 3kW Power Rating, 24V DC Control - LZ2H Series - LZ2H6X5BD

This reversing motor starter from Schneider Electric protects motors against electrical overloading. It's a DOL type, suitable to use with motor starters that run in either a forward or backward direction, such as those that control the movement of an industrial conveyor. A long electrical life of 30 million cycles makes the device consistently reliable in harsh operating conditions. It's suitable for use in control cabinets where saving space is a priority, thanks to its slim design. This unit is easy to clip onto a DIN rail for quick and tool-free installation.

Features & Benefits

• Dimensions of 99 (H) x 22.5 (W) x 114.5mm (D)
• Choice of automatic, manual or electrical reset for versatility
• Easy-to-use screw clamp terminals for simplified and solder-free electrical connections
• Includes protection against phase imbalances to help prevent damage to sensitive electronic equipment

Applications

• Logistics systems
• Food and beverage industries
• Feeding systems
• Conveyors

Does this motor starter contain any toxic heavy metals?

No, this starter motor doesn't contain any toxic heavy metals. This means it doesn't pose a health risk to operators and also makes it an environmentally-friendly choice.

Schneider Electric TeSys H Range

Техническая спецификация
pdfDatasheet
pdfProduct Environmental Profile
Верификация Better World:
Green Premium
Встречающиеся стандарты:
ATEX, CE, cULus, IEC 60947-4-2, UL 60947-4-1
Габаритная ширина:
22.5мм
Диапазон:
TeSys
Мощность номинальная:
3 кВт
Общая глубина:
114.5мм
Серия:
LZ2H
Тип монтажа:
DIN Rail
Тип пускателя:
Reversing
Товар Better World:
Да
