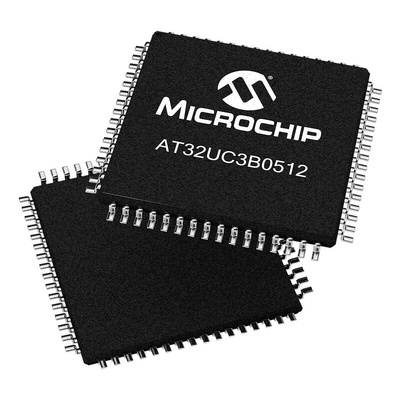

Microchip AT32UC3B0512-A2UT, 32bit AVR32 Microcontroller, AT32, 60MHz, 512 kB Flash, 64-Pin TQFP, Микроконтроллер

1276583
Номер производителя: AT32UC3B0512-A2UTПроизводитель: Microchip
Цена за шт.
3129.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

32-Bit AVR UC3 Microcontrollers

AVR32 is a high-performance 32-bit RISC microprocessor core, designed for cost-sensitive embedded applications, with particular emphasis on low power consumption, high code density and high performance. The processor implements a Memory Protection Unit (MPU) and a fast and flexible interrupt controller for supporting modern operating systems and real-time operating systems. Higher computation capabilities are achievable using a rich set of DSP instructions.
To fully exploit the power of a 32-bit architecture, the AVR32 is not binary compatible with earlier AVR architectures. In order to achieve high code density, the instruction format is flexible providing both compact 16-bit and extended 32-bit instructions. While most instructions are 16-bit, powerful 32-bit instructions are implemented to further increase performance. Compact and extended instructions can be freely mixed in the instruction stream.

Техническая спецификация
pdfDatasheet
pdfESD Control Selection Guide V1
ADC:
8 x 10 бит
Архитектура набора команд:
RISC
Высота:
1.05мм
Длина:
10мм
Каналы USB:
1 x Device, 1 x Host
Количество единиц PWM:
1 x 20 bit
Количество единиц АЦП:
1
Количество каналов I2C:
1
Количество каналов SPI:
4
Количество каналов USART:
3
Количество контактов:
64
Максимальная частота:
60МГц
Рабочая температура - максимальная:
+85 °C
Рабочая температура - минимальная:
-40 °C
Размер ОЗУ:
96 кВ
Размер программной памяти:
512 кВ
Размеры:
10 x 10 x 1.05мм
Тип монтажа:
Поверхностное крепление
Тип памяти программ:
Flash
Тип упаковки:
TQFP
Типичное напряжение питания:
3.3 В
Фамилия:
AT32
Ширина:
10мм
Ширина шины данных:
32бит
Широтно-импульсная модуляция:
1 (7 x 20 бит)
Ядро устройства:
AVR32
