96501840, STAHLWILLE Digital Torque Wrench, 40 → 400Nm, 3/4 in Drive, Square Drive, 14 x 18mm Insert, Динамометрический ключ

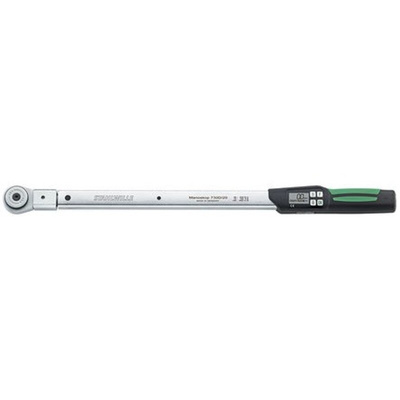

Manoskop® 730DR Electromechanical Torque Wrench

The Manoskop® 730DR electromechanical torque wrench serves to measure torques during the controlled tightening and loosening of threaded connections in the workshop sector. An appropriate socket tool must be connected to the torque wrench.

Type

•96501810: 10-100 Nm electro-mechanical torque wrench with reversible 1/2" ratchet insert tool
•96501820: 20-200 Nm electro-mechanical torque wrench with reversible 1/2" ratchet insert tool
•96501840: 40-400 Nm electro-mechanical torque wrench with reversible 3/4" ratchet insert tool

Features and Benefits

•Indicating (Type I) and click-type (Type II)
•Tactile and acoustic trigger signal
•QuickRelease safety lock
•Fast setting using convenient keypad
•Automatic compensation to achieve correct tightening torque even if a changed extension is entered
•Overload protection with acoustic and visual signals
•Automatic keypad lock prevents inadvertent changes
•Angle-controlled measurements without a reference arm using Angle Module No 7395-1
•Display also works for anti clockwise torque
•Units of measurement: Nm, ftlb, inlb
•Different tolerance limits can be set for each joint
•Visual red and green signals in the display confirm the status of the joint
•More security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code
•Up to 7500 measurements can be stored
•USB interface
•Automatic notification of the next calibration date
•Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
•Supplied in sturdy plastic case (40-100 in steel case)
•Display deviation value ± 2%, ± 1 digit
