XUSL4E30H121N, Telemecanique Sensors XUSL4E Series Preventa Light Curtain Receiver, Transmitter, 61 Beam(s), 30mm Resolution, Световые завесы

Preventa XUSL Safety Light Curtains

Telemecanique Preventa safety light curtains from the XUSL Series. Typical applications would include robotic systems, assembly and packaging lines, welding equipment and machine tools. All models are highly reliable and excellent quality.

Features & Benefits

Automatic or Manual start
IP65/67 rated

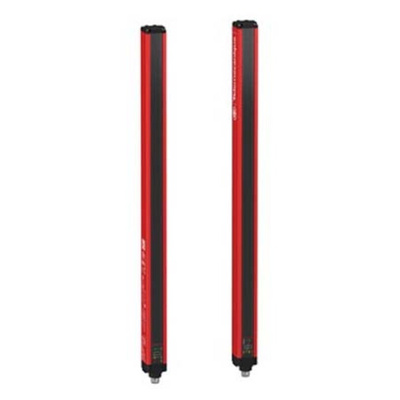

Telemecanique Sensors Light Curtain, Hand Protection Type, 1210mm Protective Height - XUSL4E Series - XUSL4E30H121N

Keep staff in safe hands with this light curtain from Telemecanique Sensors. It's made up of a transmitter that sends a constant beam of light to a receiver. When a hand passes through this beam, the unit quickly signals to stop machinery in its tracks, keeping workers safe from injury. You can adjust the sensing distance of this light curtain between 0 and 4m or 12m to align it for either short-range or long-range machine guarding. Built-in resistance to shock and vibration helps keep it stable in shaky conditions.

Features & Benefits

• Effective aperture angle is adjustable by up to +/-2.5° at 3m for flexible projection
• Both automatic and manual start/restart options for versatile configuration
• Protective height of 1210mm gives a wide sensing reach
• Test function supports accurate commissioning and debugging
• LED displays clearly show operating modes and faults, so it's easy to monitor

Applications

• Food production and packaging
• Construction sites
• Storage facilities
• Mining and quarrying industry

How fast is this light curtain?

It has a speedy maximum response time of 15.5ms, so it swiftly shuts down machinery to prevent injuries.
