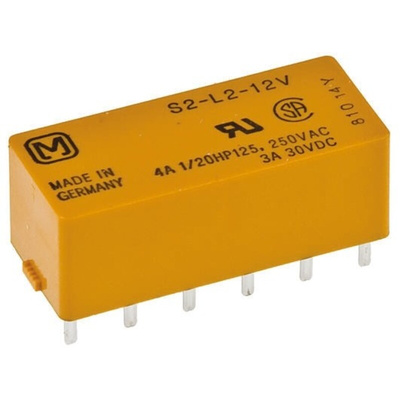

S2-L2-DC12V, Panasonic PCB Mount Latching Power Relay, 12V dc Coil, 3A Switching Current, DPDT, Реле

Panasonic S Series Latching Relays

A latching relay is similar in design and function to a standard general-purpose relay. However, there is one main difference with a latching relay, in that the latching relay will remain in the last position of which it was powered. A non-latching relay will revert to its normal position.

From Panasonic, the S Series of high sensitivity, latching relays are designed for PCB mounting. Extremely reliable and efficient the S series range of PCB mount relays is resistant to vibration and shock, making them ideal for a wide range of industrial switch applications. Compact, with a low profile the S series of power relays, are typically used in designs and applications where PCB space saving is a priority.

Manufactured from high-quality materials the Panasonic S Series of latching relays have a long life and can be relied upon for all your design maintenance and repair needs.

Features and Benefits

• Robust and reliable


• Compact, with a low profile


• Lightweight, only 8g


• Excellent resistance to vibration and shock


• DIL terminals array to fit a 2.54mm grid


• Low EMF (approximately 0.3μV)


• DPCO / DPDT (changeover) and 4PNO contact arrangements


• 4 amp current rating @ 250V AC 3 amp current rating @ 30 VDC


• 12V dc and 24V dc coil voltages


• Gold clad silver alloy contacts


• Wide temperature range - 55˚ C to +65 ˚ C


• Dimensions, H 10mm x W 28mm x D 12mm

Applications

Latching relays are used in a wide range of switching applications across many different types of environments and sectors. Some of the more common control circuits are

• Telecommunication equipment


• Data processing equipment


• Alarms and security


• Measuring equipment


• Electronics designs

Accessories

If required a PCB mount socket is available enabling the latching relay to be mounted directly onto a PCB. See stock number 127-9342

Approvals

UL and CSA

S -Relays
