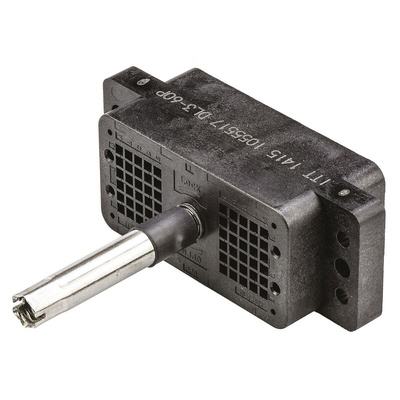

DL3-60P, ITT Cannon, DL 2.54mm Pitch Plug Body, Male, Straight, 60 Way, Разъем

ITT Cannon ZIP Connector Plug

The ITT Cannon DL series high-density 60-way ZIP connector plug has zero insertion force. This male connector has 60 contacts and it is made of beryllium copper with gold plating. The DL series connectors will mate and lock together using the appropriate actuating handle fitted to the camshaft in the plug body. This makes them ideal for quick and durable mating in multi-wire power and signal applications where high performance is extremely important. This connector has backshell/strain relief and polarising option, which ensures correct orientation. The housing is made of thermoplastic material.

Features and Benefits

Any number of contacts can be loaded into individual cavities, up to the maximum stated
Current rating is 5A
Voltage rating is 1.2kVAC
Long life - 10000 mating cycles
Moulded alpha numeric cavity grid reference
Operating temperature ranges between -55°C and 105°C
Panel mounting holes accept back shells and polarising pillars
Termination type is crimp

Applications

Broadcast and avionics industry
Computers
Instrumentation equipment in medical field

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Combination Table

110900-0008 Datasheet
