XY2CH13290H29, Telemecanique Sensors XY2CH Grab Wire Switch With E-Stop, 30m, 2NC, NO, Переключатель

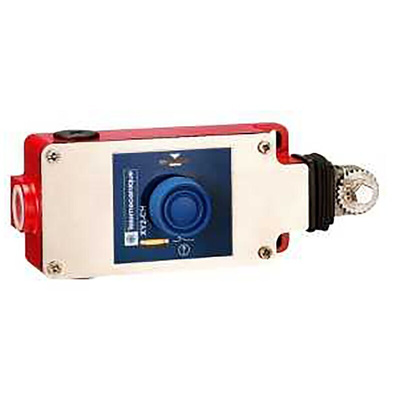

Telemecanique Sensors Emergency Stop Rope Pull Switch

The Telemecanique Sensors XY2-CH-series emergency stop rope pull switch has a 1NO/2NC contact configuration. It has Zamak housing and has a straight mount orientation. The maximum AC and DC voltage is 240VAC and 250VDC respectively and the current rating of the switch is 3A and 270mA for AC and DC respectively. This switch has a rope span of 30m and rope tension indicator type.

Note:
Manufacturer part numbers with the suffix H29 are the ISO M20 threaded cable entry version.

Features and Benefits

Size of cable entry is ISO M20
For machine tools, conveyers and handling applications
Recommended distance between cable supports is 5m
Built-in turnbuckle accessory
Pushbutton reset
Water and dust tight enclosure
Surface mount

Applications

Conveyor systems
Packaging
Textiles
Transfer machines
Presses
Woodworking equipment
Paint lines
Test laboratories

Certifications

UL approved
CCN certified
CSA certified
CE certified
IP65 rated
