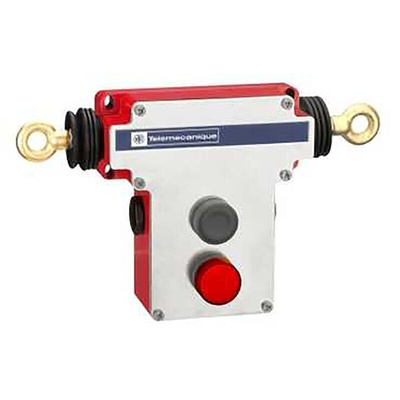

XY2CEDA196H7, Telemecanique XY2CE Grab Wire Switch With E-Stop, 2 x 35 → 2 x 100m, 2NC, 2NO, Переключатель

1300875
Номер производителя: XY2CEDA196H7Производитель: Telemecanique
Цена за шт.
90615.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Telemecanique XY2CED Emergency Stop Dual Rope Pull Switches

Telemecanique XY2CED emergency stop dual rope pull switches are designed to reduce the risk of injury to persons and damage either to machines or work in progress. These dual rope pull switches feature double anchor points and can support up to 2 x 100 m with supports and pulleys. They can be tripped by a single human action when a normal emergency stop function is not available and will also trip in the event of the tripwire breaking.

Features and Benefits

Switches incorporate positive opening operation contacts, the tripping of the switch being made with positive action
The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling
Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch
Recommended distance between cable supports is 15m

Техническая спецификация
pdfDatasheet
pdfInstruction Manual
Встречающиеся стандарты:
CCC, CSA, CSA C 22-2, EAC, EN/IEC 60947-5-5, UL (NISD), UL 508
Глубина:
142мм
Диапазон:
Preventa XY2
Длина:
285мм
Кнопка E-Stop:
Да
Кнопка сброса:
Да
Количество входов под кабель:
3
Конфигурация полюса:
DPST
Максимальная диапазон троса:
2 x 35 → 2 x 100м
Максимальное напряжение переменного тока:
24 → 130В
Максимальное напряжение постоянного тока:
24 → 130В
Максимальный ток:
3 A перем. тока, 270 мА пост. тока
Материал корпуса:
Нержавеющая сталь (Крышка), Zamak (Тело)
Нормальное состояние конфигурации:
2NC, 2NO
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-25°C
Размер кабельных входов:
1/2 NPT
Размеры:
285 x 106 x 142 мм
Серия:
XY2CE
Сертификация опасной зоны:
ATEX
Степень защиты IP:
IP66
Тип индикатора:
Rope Tension
Ширина:
106мм
