2213600-3, TE Connectivity In Line Splice Connector, Clear, Insulated, Tin 0.75 → 1.5 mm², 1.5 → 2.5 mm², 16, Контакты

1300891
Номер производителя: 2213600-3Производитель: TE Connectivity
Цена за шт.
546.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

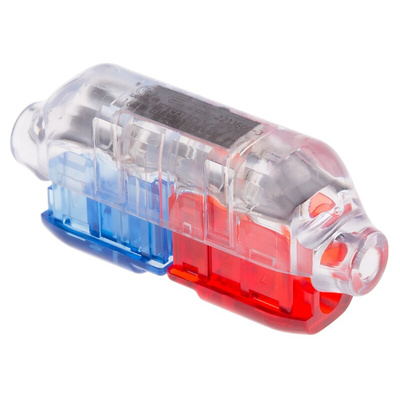

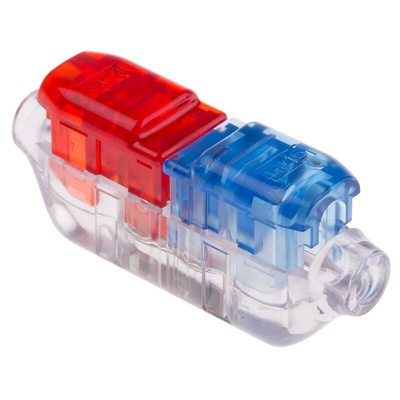

TE Connectivity CoolSplice Large Wire Splice Connectors

CoolSplice large wire splice connectors suitable for splicing 0.75 mm² to 4 mm² wire and producing an industry proven reliable connection. These CoolSplice splice connectors have two independent push buttons on the left and right side of the connector. The wires can be terminated independently allowing ease of use and flexibility in factory or field installation. When squeezed with pliers the push buttons terminate the wires by inserting them into an IDC crimp contact. This IDC technology eliminates the need to pre-strip wires and saves installation time. The clear body of these CoolSplice connectors enables visual inspection of the connection and the push buttons are colour coded to aid wire size identification. These CoolSplice IDC wire connectors have gel sealing enabling them to be used in harsh environment applications and offer waterproofing protection up to an IPX8 rating.

Features and Benefits

Suitable for large wire sizes
Industry proven reliable connection
Independent push button termination for ease of installation
IDC connection technology for time saving installation
Gel sealing for use in harsh environment applications
Clear body for visual inspection
Colour-coded push buttons for wire size identification

Applications

These CoolSplice large wire splice connectors are suitable for use in a wide range of applications. These applications include roadway lighting, street lighting, signage, buildings and bridge and tunnel lighting. These CoolSplice large wire splice connectors are also used in indoor light fixtures and wire harness field repairs

Standards

IEC 60998-2-3

Техническая спецификация
pdfCoolSplice Large Wire Connector
pdfCoolSplice Large Wire Connector - Line Drawing
Длина общая:
48мм
Изоляционный:
Insulated
Максимальный размер провода AWG:
14AWG
Максимальный размер провода мм²:
2.5мм²
Материал изоляции:
PC
Материал контактов:
Фосфорная бронза
Минимальный размер провода AWG:
18AWG
Минимальный размер провода мм²:
0.75мм²
Покрытие контактов:
Олово
Размер провода:
0.75 → 1.5 мм², 1.5 → 2.5 мм², 16 → 14 AWG, 18 → 16 AWG
Тип сращивания:
In Line
Толщина:
12.8мм
Цвет:
Светлый
