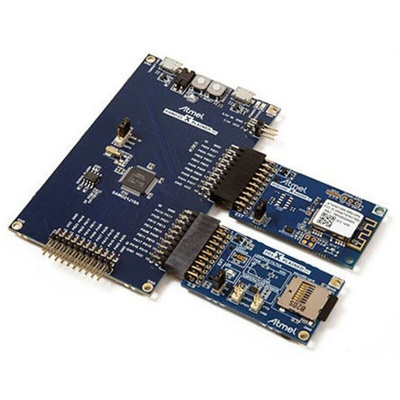

ATWINC1500-XSTK XPlained Pro Starter Kit

The ATWINC1500-XSTK XPlained Pro Starter Kit is designed to evaluate the ATWINC1500 IEEE 802.11 b/g/n IoT (Internet of Things) network controller. There are no requirements for external debuggers or programmers due to the XPlained Pro standalone features. Applications include home appliances (cooking, motor control, refrigeration,washing), home entertainment (remote control, video), industrial (human machine interface, instruments, PLC and I/O modules, sensors) and mobile electronics (cameras, mobile phones, portable audio players, portable games consoles, tablets and notebooks). Beneficial characteristics of the XPlained Pro platform are the integration of Atmel Studio, the inclusion of Atmel software framework drivers and demo code and support streaming data.

ATSAMD21-XPRO Xplained Pro Development board
SAMD21J18A ARM Cortex-M0+ core MCU with 256KB Flash memory, 32KB SRAM
8Mb Serial Flash memory
3 x Xplained Pro Extension headers
microUSB debug connector
Virtual COM-port interface to host MCU via UART
Embedded Debugger(EDBG)
Reset pushbutton
User pushbutton
User LED

ATWINC1500 XPlained Pro Extension board
ATWINC1500 WiFi network controller module
Supports IEEE 802.11 b/g/n (1x1) for up to 72Mbps
PCB antenna
20-pin Extension connector

Digital I/O WING Xplained Pro Extension board
Light sensor
Temperature sensor
microSD card socket
20-pin Extension connector

SmartConnect Wi-Fi low power solutions allow engineers without any 802.11, RTOS, IP stack or RF experience, to easily integrate Wi-Fi into their IoT designs. The SmartConnect turnkey software that is available in Atmel Studio enables engineers to dedicate more time to adding functionality to their designs.
