SEGGER 8.06.04 J-Link 10-Pin Needle Adapter Adapter for use with J-Link Probes

J-Link 10-Pin Needle Adapter

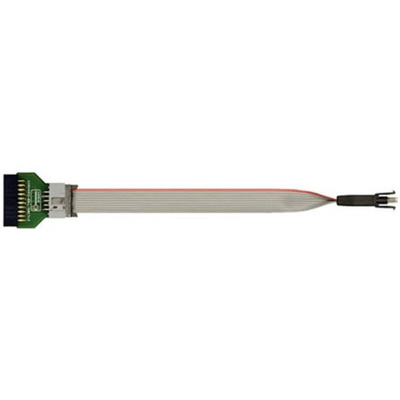

The J-Link 10-pin Needle Adapter has been designed to connect a J-Link Probe to a PCB which does not have a mating connector or programming header.

Compatible Probes

• J-Link BASE Emulator (131-1319) , J-Link PLUS, J-Link PRO, J-Link ULTRA+, J-Link EDU, Flasher ARM, Flasher Portable

Features

• No additional connector required on target PCB
• Very small footprint
• High-reliability spring pins for secure connections
• 3 locating pins, so adapter cannot be connected the wrong way round
• Plugs into probe 20-pin 0.1in J-Link connector
• No external power supply required
• Option to power the target hardware via J-Link

J-Link 10-Pin Needle Adapter schematic
