5.07.01 Flasher ARM, SEGGER Flasher ARM Programmer

Flasher ARM Programmer

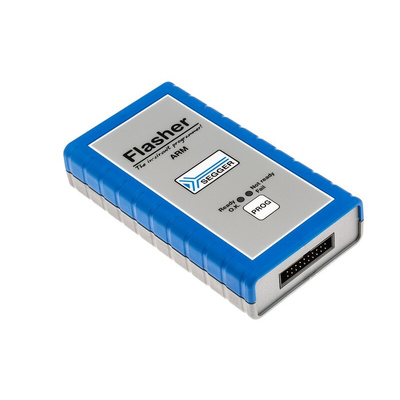

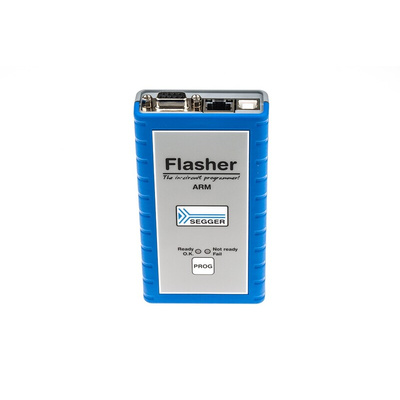

The Flasher ARM is a programming tool for microcontrollers with on-chip or external Flash memory and an ARM core. Flasher ARM is designed for programming Flash targets with the J-Flash software or stand-alone. In addition, Flasher ARM has all of the J-Link functionality.

Supported Processors

• ARM Cortex-A: A5/A7/A8/A9/A12/A15/A17
• ARM Cortex-M: M0/M0+/M1/M3/M4/M7
• ARM Legacy: ARM7, ARM9, ARM11

Features

• Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without the use of PC program)
• 10/100 Ethernet via RJ45 connector
• Supports internal and external Flash memory devices
• 64MB memory for storage of target program
• Serial in target programming supported
• Data files can be updated as mass storage or via J-Flash
• Host interface: USB 2.0 or RS-232 DE9 connector
• Target interface: JTAG/SWD 20-pin
• Powered through USB connection
• Can be used as J-Link (JTAG emulator) with download speed up to 1MB/sec
• Programming speed typically between 30KB/sec and 1MB/sec
• Max programming speed depends on target hardware and max programming speed of the Flash memory
• ASCII command interface to control Flasher without use of PC program
• Authorized Flashing allows limit to number of Flash programming cycles and to protect the Flasher against non-authorized access in case of external production
• Dimensions: 121 x 66 x 30mm
• Free software updates, 2 years of support

Supplied with

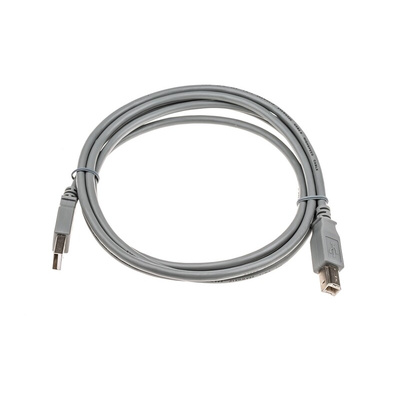

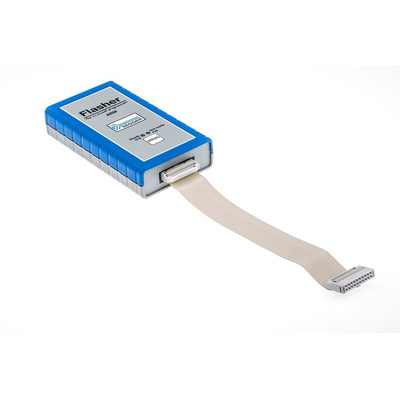

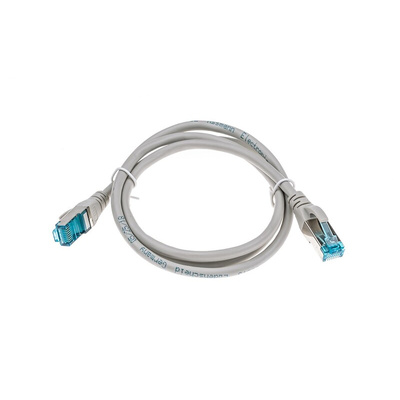

Ethernet cable, 20-pin target ribbon cable, RS-232 serial cable, USB cable

SEGGER Flasher ARM/Portable user guide
