SEGGER 8.07.01 SWD Isolator Adapter for use with J-Link Probes

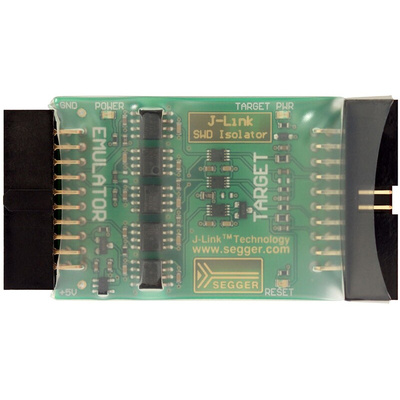

J-Link ARM SWD Isolator Board

The J-Link SWD Isolator can be connected between a J-Link Probe and an ARM-board with a 20-pin debug connector to provide electrical isolation. This is essential when the development tools are not connected to the same ground as the application.

Compatible Probes

J-Link BASE 131-1319, J-Link PRO, J-Link ULTRA+, J-Link PLUS, Flasher ARM

Features

• 1kV DC optical isolation
• +3.3V and +5Vdc target operation supported
• Powered from probe and target
• SWD 20-pin connection with SWCLK, SWDIO, SWO and RESET signals
• Power consumption on target side: 25mA typical
• SWD frequency: Up to 4MHz
• 3 x LEDs: Probe Power, Target Power and Target RESET
