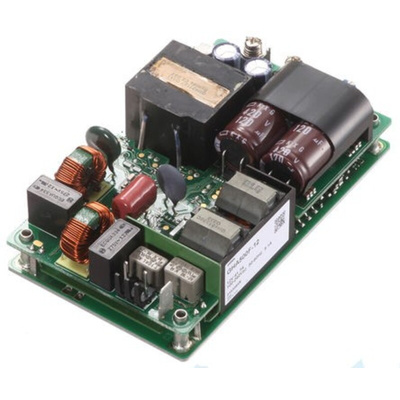

Cosel Switching Power Supply, GHA500F-48-P, 48V dc, 4.2 A, 10.5 A, 504W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

Cosel Embedded Switch Mode Power Supply

The Cosel GHA series 504W single output AC to DC embedded switch-mode power supply has an output current of 2.3A (convection), 4.2A (conduction cooling), 10.5A (forced air) at 48VDC. Though being highly reliable, any stress to the P. C. B, such as twisting or bending, may cause a defect to the unit. Hence, it is advisable to handle the unit with care. It has a universal input supply voltage rating ranging from 90VAC to 264VAC.

Features and Benefits

Industrial and medical safety approvals
Fits 1U applications
Low leakage current
Internal dual fuses
Harmonic attenuator (complies with IEC61000-3-2 class A)
Built in power factor correction circuitry for decreased AC input capacity
Built-in inrush current, overcurrent and overvoltage protection circuits
With remote ON/OFF (optional)
With AUX1 (12V) (optional)
With AUX2 (5V) (optional)
With power-good signal (optional)
5 year warranty

Certifications

UL60950-1
C-UL, EN60950-1
ANSI/AAMI-ES60601-1/CSA60601-1
EN60601-1 3rd

Datasheet

GHA300F/GHA500F PSU Instruction Manual
