RACD04-500, Recom LED Driver, 3 → 8V dc Output, 4W Output, 500mA Output, Constant Current, Драйвер светодиодов

RECOM LED Driver, 90 to 264V AC Input Voltage, 75% Efficiency - RACD04 Series - RACD04-500

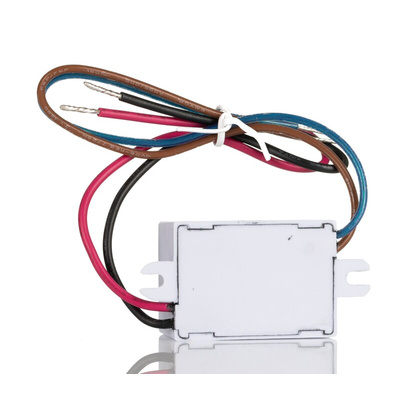

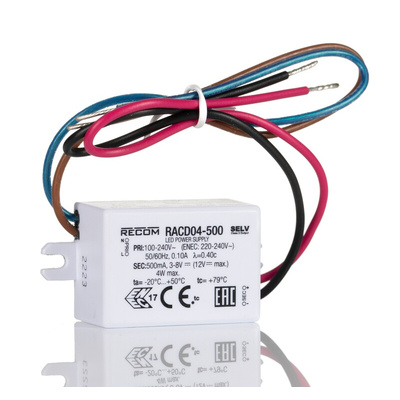

Take charge of your hardware's power source with this LED driver from RECOM. As its output voltage adjusts between 3 and 8V DC, it adapts to its machine's changing working conditions for a steady power supply. The device minimises wasted power to keep its process energy-efficient by converting up to 75% of its loads. Its colour-coded wires make for quick work when identifying the component's connections during installation. Thanks to the driver's built-in overvoltage, overload and short-circuit protection, it bounces back from a fault straight away to avoid extra downtime.

Features & Benefits

• Line regulation rating of ±5% for reliability
• Start-up time of 500ms to speed through system preparation
• Plastic and silicone insulation, minimising exposure to hazardous electrical loads
• IP65 rating indicates protection against contaminants and low-pressure water jets from any direction

Applications

• Signalling systems
• Retail installations
• Process control

What temperatures can I use this LED driver in?

The unit has a wide operating temperature range of -20°C to +50°C, so it holds its own in challenging environments.

Recom LED Drivers

RACD04, AC/DC Converter - 4 Watt Constant Current Single Output LED Drivers

Datasheet

Installation Sheet - RACD04-500
