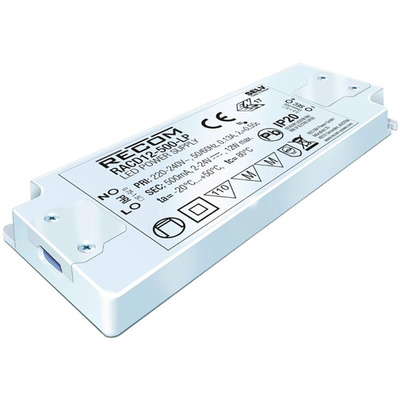

RACD12-500-LP, Recom LED Driver, 2 → 24V dc Output, 12W Output, 500mA Output, Constant Current, Драйвер светодиодов

12W Constant Current LED Driver, RACD12-LP Series

Low Profile case (13 mm height max.)
230 V ac input voltage LED Power Supply
Fully Protected for Short Circuit, Open Circuit, Over Load, Over Voltage and Over Temperature
Low Standby Power, ErP conform
Screw Terminal Block Input/Output with Cable Clamps

RECOM LED Driver, 130mA Input Current, 81% Efficiency - RACD12-LP Series - RACD12-500-LP

Need a reliable power source for your lighting system? This 12W LED driver from RECOM will have you beaming. When supplied with 230V AC, it delivers 2 to 24V DC at a constant current of 500mA. This means it helps to prevent overheating and ensures sensitive arrays perform smoothly, without so much as a flicker. Thanks to its wide operating temperature range between -20°C and +50°C, this unit can handle working under tough conditions. It comes with two screws so you can mount it in a flash, without needing specialist tools.

Features & Benefits

• IP20 rating indicates it's dust-tight, touch-proof and protected from objects larger than 12mm
• Design lifetime of 30,000 hours, so it's highly reliable
• 5 to 85% RH operating humidity range means it functions in areas with high levels of non-condensing water vapour

Applications

• Troffer lighting systems
• Furniture and shelving design
• Hotels and restaurants

What size is this unit?

This LED driver measures 128 (L) x 50 (W) x 13mm (H), so it's easy to install discreetly. It weighs just 70g, so won't put strain on the mounting surface.

Recom LED Drivers

RACD12-LP, AC/DC Converter - 12 Watt Constant Current Single Output LED Drivers

Datasheet
