RACD20-500-LP, Recom LED Driver, 2 → 40V dc Output, 20W Output, 500mA Output, Constant Current, Драйвер светодиодов

20W Constant Current LED Driver, RACD20-LP Series

Low Profile case (13 mm height max.)
230 V ac input voltage LED Power Supply
Fully Protected for Short Circuit, Open Circuit, Over Load, Over Voltage and Over Temperature
Low Standby Power, ErP conform
Screw Terminal Block Input/Output with Cable Clamps

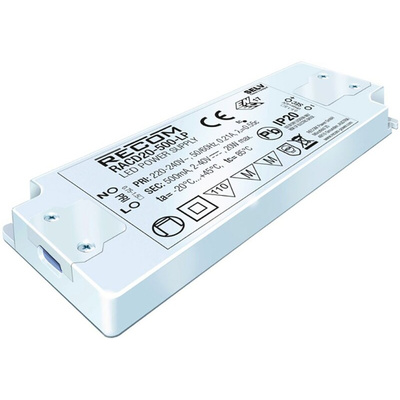

RECOM LED Driver, Enclosed Configuration, AC/DC Input Voltage - RACD20-LP Series - RACD20-500-LP

Need a way to provide power to your lighting array? With this LED driver from RECOM, you can make light work of it. The device takes input signals of 230V AC and converts them to outputs between 2 and 40V DC with a constant current of 500mA. This smooth and steady supply helps to extend the life of your LEDs. Thanks to a mean time between failures of 30,000 hours, you can be sure this bright spark is a long-lasting solution.

• -20°C to +45°C operating temperature range indicates you can use it in challenging conditions
• High efficiency of 85%, so it's an energy-saving component
• IP20 rating for protection from objects larger than 12mm
• Operating humidity range between 5 and 85% RH for use in areas with high levels of non-condensing water vapour

Applications

• Coving lighting
• Shelving and furniture design
• Troffer lighting systems

What's the power rating of this unit?

This LED driver supplies up to 20W of power from a 75g package, so it's small but mighty.

How much input current does this unit take?

This LED driver has an input current rating of 210mA, for wide compatibility.
