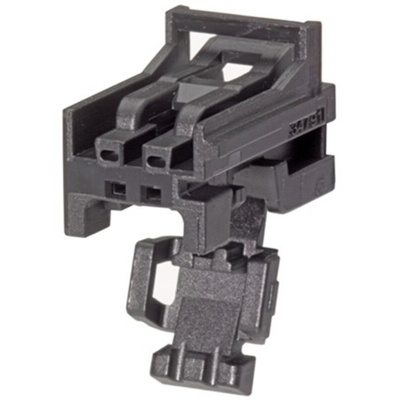

34791-0020, Molex, Mini50 Automotive Connector Socket 2 Way, Crimp Termination

Molex Mini50™ Unsealed Automotive Single Row Receptacle Housings

From the Molex Mini50™ series, a 2 circuit single row unsealed automotive receptacle housing. The cable mount crimp style housing has an industry approved USCAR 050 interface and is 50% smaller than conventional 0.64 mm interfaces. This feature minimises the PCB footprint enabling design flexibility providing essential space saving solutions. These Mini50™ receptacles have a built-in independent secondary lock (IPL) that ensures the terminals are securely retained in the housing. Locking, keying and polarising to mating parts also feature.

Features and Benefits

• Designed and tested to USCAR 050 specifications
• 50% smaller than traditional 0.64 mm USCAR unsealed interfaces
• Independent secondary lock (ISL) terminal retention feature
• Board alignment and retention features
• High temperature thermoplastic housings

Applications

• Mirrors
• Lighting
• Cameras and sensors
• Switches
• Radios
• Navigation

Molex 2.00mm Mini50 Automotive Connectors

The Mini50 series automotive connector system with its compact, low profile design and small footprint offers 50% space savings over traditional USCAR 0.64 mm connectors. The smaller terminals of the Mini50 series automotive connectors enable more signals to be fitted into vehicle interiors. The Mini50 connector system is designed and tested to USCAR 050 specifications and is approved as the industry’s only USCAR 050 interface.

2 pole receptacle drawing

2 pole receptacle part detail

Molex Mini 50 Connectors Features and Benefits
