E773, Eclipse Pot Magnet 13mm Threaded Hole Samarium Alloy, 4kg Pull, Магнит

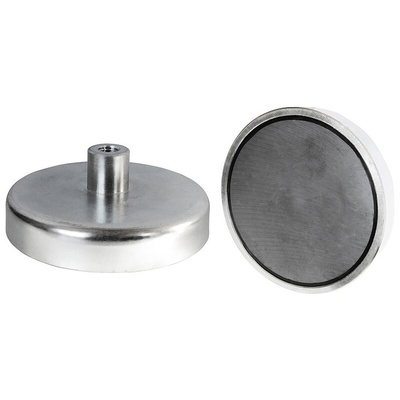

Eclipse Shallow Pot Magnet

The Eclipse shallow pot magnet is made of the samarium-cobalt flat gripper with galvanised surface finish and has up to 4kg pull force. This pot magnet is known as female threaded stud pot magnet because the internally threaded hole can take pot magnets with a threaded bar at the back as well as bolts. It can be used at temperatures up to 200°C.

Features and Benefits

Total height of 11.5mm and a 13mm diameter
Ferrule outer diameter is 6mm
Mild steel pot with zinc plated body
Decent thread length allows reasonably high torque to be applied to securely hold each pot magnet in place
Excellent resistance to corrosion
Install by press fitting, gluing and casting
M3 thread size
Three to five times the adhesive force of hard ferrites
Weight is 0.0075kg

Applications

Assembly work
Tensioning
