1059100000, Weidmuller W Series End Cover for Use with DIN Rail Terminal Blocks

Double Deck Terminal

A 2 tier terminal, enabling higher density wiring on the rail. The WDK 2.5 is a standard feed through while the WDK 2.5V has a commoning bar connecting upper and lower tiers.

All materials comply with RoHS requirements and have been tested to current environment guidelines.

Options include
779-598 – WDK 2.5 Double Level Terminal Block
235-5239 – WDK 2.5V Double Level Terminal Block
131-6700 - W End Plate for Terminal Block

Features:

• Continuous operating temperature: -50 °C to 120 °C
• Material: Wemid

Approvals

CSA certified, UL listed, SEV, DEMKO, NEMKO, LLOYDS REGISTER OF SHIPPING, SETI, KEMA, Reg of USSR

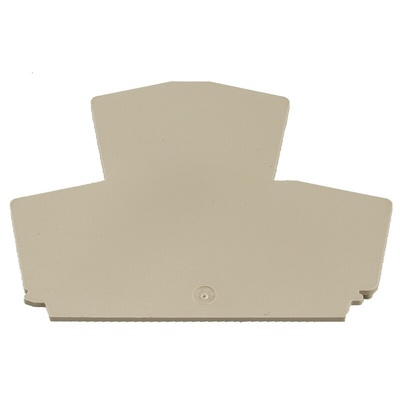

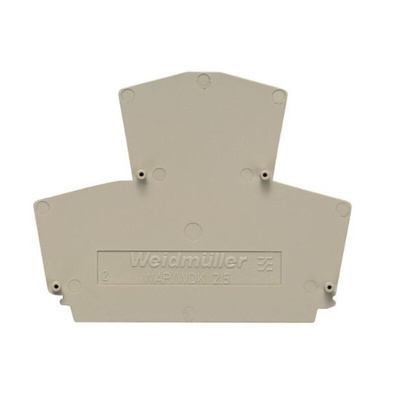

Weidmuller End Plate, 60mm Height, 1.5mm Width - W Series - 1059100000

Minimise the chance of dust or moisture affecting the performance of your DIN rail terminal block with this end plate from Weidmuller. It also helps to cover exposed wires, which reduces the risk of live parts causing electric shock for increased safety. Installation and removal are quick and easy, as you can simply snap the unit directly in place. This end plate is compatible with Weidmuller's W series of terminal blocks, which all feature the same profile for ease of wiring and mounting.

Features & Benefits

• Wide operating temperature range between -50°C and +120°C for use in demanding environments
• Light weight of 4.18g to place minimal strain on your DIN rail
• Flame-retardant properties for safety in the event of a fire
• Wemid material is resistant to heat and impact for use in harsh industrial settings

Applications

• Electrical installations
• Power generation plants
• Automotive manufacturing
• Food and beverage production

How many end covers do I get in a pack?

Each pack is supplied with 10 end covers, so you'll have enough on hand for multiple uses.

The ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.

Datasheet

Datasheet - 1020080000

Catalogue - Terminal Blocks
