236-402, Wago 236 Series PCB Terminal Block, 2-Contact, 5 mm, 5.08 mm Pitch, 1-Row, Клеммная колодка

Standard Terminals

Snap-together screw-less terminals suitable for use in vibration and shock environments
Optional end-plate allows multiple-way terminal blocks to be built
Pin size 0·75 x 0·75mm

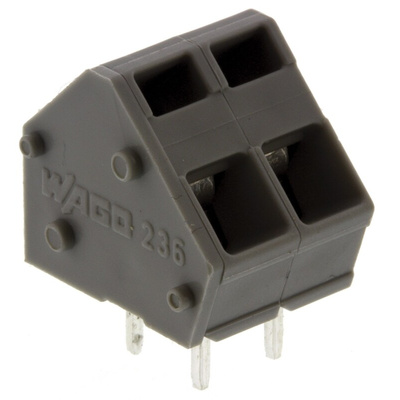

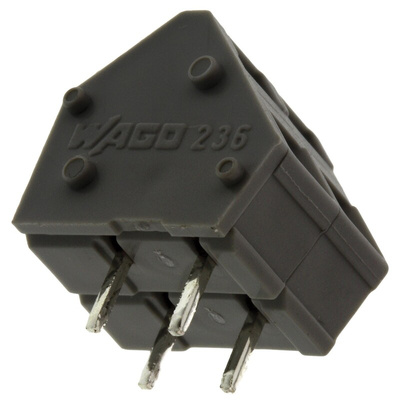

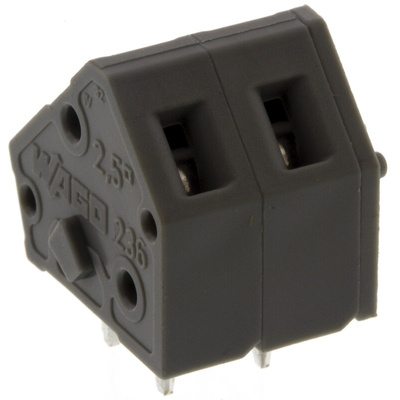

Wago PCB Terminal Block, 45° Body Orientation, Cage Clamp Termination - 236 Series - 236-402

Work the angles and anchor your cables to your board with this PCB terminal block from Wago. As the conductor connection slopes at 45°, it's handy when passing wires in tight spaces. This single-level piece offers two connections to accommodate a dual-wiring solution. It has robust cage clamp terminations that press down on cables to keep them in place. The chrome-nickel steel clamping spring holds its own against corrosion, handling humid environments with ease.

Features & Benefits

• Measured shock voltage of 4kV to endure fault currents
• Tin-plated ECu contacts resist mechanical wear
• Safe to use in high-power systems with a current rating of 15A
• PA66 housing gives insulation protection against electric shock

Applications

• Marine engineering
• Communications equipment
• Measuring instruments
• Power stations

How do I mount this terminal block on my board?

Thanks to the THT PCB contact, you mount this terminal by soldering it to through-holes in your board.

What wire sizes can this block team up with?

It accommodates wire sizes of 28 to 12AWG, so it's a versatile piece of kit.
