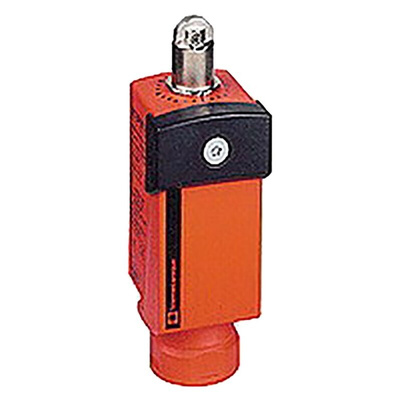

XCSP3702P20, Telemecanique Sensors XCSP Series Roller Plunger Interlock Switch, 2NC/1NO, IP66, IP67, 3P, Plastic Housing, Концевой выключатель

XCSP Series, Safety Limit Switches

The Schneider XCSP series of compact industrial limit switches are designed for monitoring access doors and/or guards on machines with low inertia and also on machines with high inertia, when used in conjunction with actuator operated guard switches. When used on their own they are always installed in ’positive mode’, but if combined in pairs then one switch in ’positive mode’ and the other switch in ’negative mode’. Available with a linear movement (plunger) or rotary movement (lever).

N/C contacts with positive opening operation
Slow break, break before make contacts
Plastic or metal housing
One tapped M20x1.5 cable entry
Head on the rotary movement switch (lever) is adjustable in 15° steps throughout 360°
Linear movement switch (plunger) has an on-end approach only
IP66/67 protection in accordance with EN/IEC 60529
ROHS compliant

Safety Limit Switch

Datasheet
