XCSDMP7005, Telemecanique Sensors XCSDMP Series Safety Switch, Plastic Housing, 3NC/NO, Магнитный выключатель

XCS-DMC/XCS-DMP Coded Magnetic Switches, Rectangular

XCS-DM coded magnetic safety switches are designed for monitoring the doors, covers and guards of industrial machines with imprecise guiding and low inertia. These safety switches are ideally suited for machines subjected to frequent washing or liquid spray. They protect the operator by immediately stopping any dangerous movement as soon as the distance between the switch and its magnet is greater than 8mm (5mm for XCS-DMC).
XPS-DM safety modules are specifically designed for monitoring the coded magnetic safety switches. When the XCS-DM safety switch is used in conjunction with the XPS-DM safety relay they offer a certified safety solution for guard monitoring.

Coded magnetic safety switch

Actuation on 3 sides: face to face and face to side
8mm tolerance to misalignment (5mm for XCS-DMC)
LED versions have an LED in series with one N/C giving indication when guard is closed
Coded reed technology - switch cannot be totally defeated by a simple magnet
Rectangular plastic housing
Dimensions: compact: H51 x W16 x D7mm, standard: H88 x W25 x D13mm
Available pre-cabled or with connector on flying lead
IP66/67 protection in accordance with EN/IEC 60529
ROHS compliant

Safety module

Allows multi-switch monitoring to Safety Category 4 solutions in accordance with EN954-1/ISO 13849-1
XPS-DMB can monitor 2 independent sensors and modules, XPS-DME can monitor 6 independent sensors and modules
2 safety outputs and 2 solid state outputs for signalling to the process PLC
LEDs on the front face provide information on the monitoring circuit status
Dimensions: H99 x W22 x D114mm
IP20 protection on terminals and IP40 protection on enclosure, in accordance with EN/IEC 60529

Note

With the appropriate monitoring system and correctly wired these switches can reach safety category 4 conforming to EN/ISO 13849-1, PL e conforming to EN/ISO 13849-1, SIL 3 conforming to EN/IEC 61508.

Standards

IEC 947-1; EN 547-5-1; EN 547-5-3; EN 60204-1; EN 1088 (for Magnetic Switch only)
IEC 204-1; EN 292; EN 60204-1; EN954-1; EN1088 (for Safety Module only)

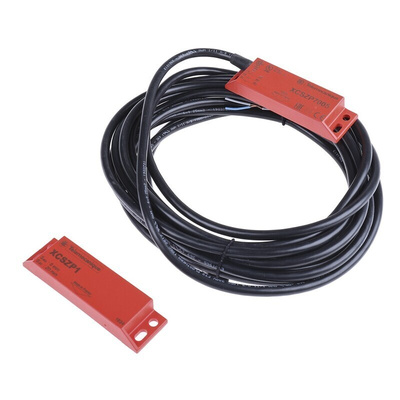

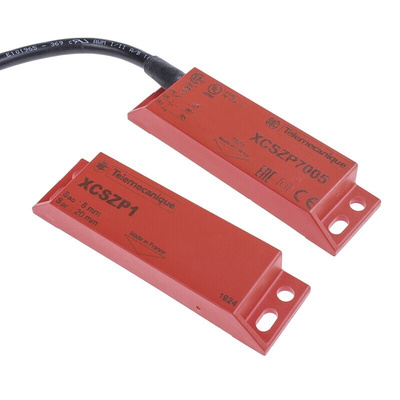

Telemecanique Sensors Safety Switch, Pre-Cabled Electrical Connection, 3 Approach Directions - Preventa Series - XCSDMP7005

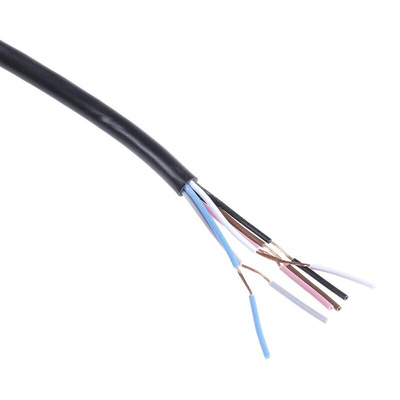

Need to safeguard your industrial system? Put this 24V DC safety switch from Telemecanique Sensors on duty. It cuts power to machinery if a guard door moves by 8mm, keeping staff protected from dangerous processes. Thanks to its maximum switching voltage of 100V DC, the unit's ideal for use with powerful electrical equipment. A long 5m cable makes it a handy option for large work areas. Harsh conditions are no problem for this switch, as it withstands temperatures between -25°C and +85°C.

Features & Benefits

• IP67 rating means it's dust-tight and withstands immersion in water up to a depth of 1m
• Compact dimensions of 13 (D) x 88 (H) x 25mm (W) mean it saves space
• PVC cable is weather-resistant so it's protected in tough environments
• Low weight of 180g so it won't add strain to your equipment

Applications

• Packaging industry
• Robotics systems
• Automotive manufacturing

How reliable is this safety switch?

This unit has an electrical durability rating of 1,200,000 cycles, so it's highly reliable.

What's the current rating of this switch?

This energy-saving device has a low current rating of 100mA.

Datasheet

Instruction Sheet - XCSDMP7005
